45MR-3810-T

Moxa 45MR-3810-T

ioThinx 4500 Series (45MR) Modules
Module for ioThinx 4500 Series, 8 AIs, -10 to 10 V/0 to 10 V, -40 to 75°C operating temperature

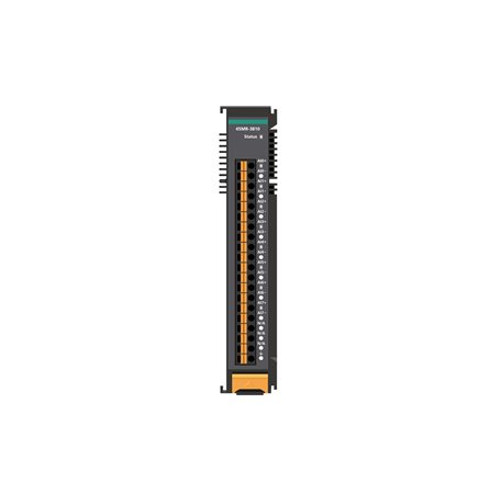

Image of 45MR-3810-T
Free Ground Shipping on U.S. Orders over $99 $423.07 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-iothinx-4500-series-45mr-modules-datasheet-v5.1.pdf
  • I/O modules include DI/Os, AI/Os, relays, and other I/O types
  • Power modules for system power inputs and field power inputs
  • Easy tool-free installation and removal
  • Built-in LED indicators for IO channels
  • Wide operating temperature range: -40 to 75°C (-40 to 167°F)
  • Class I Division 2 and ATEX Zone 2 certifications
View More
Overview Specifications Accessories

Introduction

Moxa’s ioThinx4500 Series (45MR) Modules are available with DI/Os, AIs, relays,RTDs, and other I/O types, giving users a wide variety of optionsto choose from and allowing them to select the I/O combination thatbest fits their target application. With its unique mechanical design,hardware installation and removal can be done easily without tools,greatly reducing the amount of time required to set up and replacethe modules.

Easy Tool-FreeInstallation and Removal

The ioThinx4500 Series has a unique mechanical design that reduces the amountof time required for installation and removal. In fact, screwdriversand other tools are not required for any part of the hardware installation,including mounting the device on a DIN-rail, as well as connectingthe wiring for both communication and I/O signal acquisition. Furthermore,no tools are required to remove the ioThinx from a DIN-rail. Removingall of the modules from a DIN-rail is also easy using the latch andrelease tab.
