AIG-301-US-AZU-LX

MOXA AIG-301-US-AZU-LX

AIG-301 Series
Advanced IIoT gateways with Arm Cortex-A7 dual-core 1 GHz processor, 1 CAN port, 4 DIs, 4 DOs, USA LTE band support, ThingsPro Edge and Azure IoT Edge software, -20 to 70°C operating temperature
AIG-301-US-AZU-LX
Free Ground Shipping on U.S. Orders over $99 $1,056.30 ON BACKORDER Estimated Availability: 08/01/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-aig-301-series-datasheet-v2.0.pdf
  • Supports generic MQTT client
  • Supports MQTT connection with built-in device SDKs for Azure/AWS cloud
  • Supports Modbus RTU/ASCII/TCP master/client
  • Supports Modbus TCP server
  • Supports Azure IoT Edge
  • Supports data buffering using store and forward and datalogger
  • Supports easy device-provisioning with the ThingsPro Proxy utility
  • Provides robust OTA function to prevent system failure during software upgrades
  • Equipped with Secure Boot to prevent malicious software-injection attacks
  • -40 to 70°C operating temperature range
  • LTE Cat. 4 US, EU, and APAC models available
View More
Overview Specifications Accessories

Introduction

The AIG-301 Series advanced IIoT gateways are designedfor Industrial IoT applications, especially for distributed and unmannedsites in harsh operating environments. The gateways implement ModbusRTU/TCP master/client protocols which can help you to effortlesslycollect data from Modbus devices. Moreover, Azure IoT Edge softwareis preloaded and seamlessly integrated with the AIG-301 to enableeasy, reliable, yet secure sensor-to-cloud connectivity for data acquisitionand device management using the Azure Cloud solution. With the useof the ThingsPro Proxy utility, the device provisioning process iseasier than ever. Thanks to the robust OTA function, you never haveto worry about system failure during software upgrades. With the SecureBoot function enabled, you can prevent malicious software injectionattacks, especially during the boot-up process.

Appearance

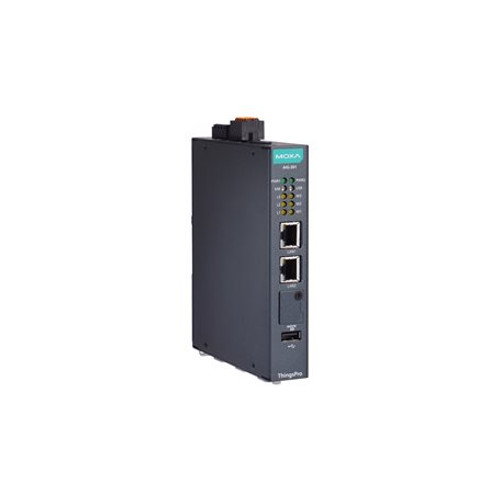

AIG-301-T-AZU-LX

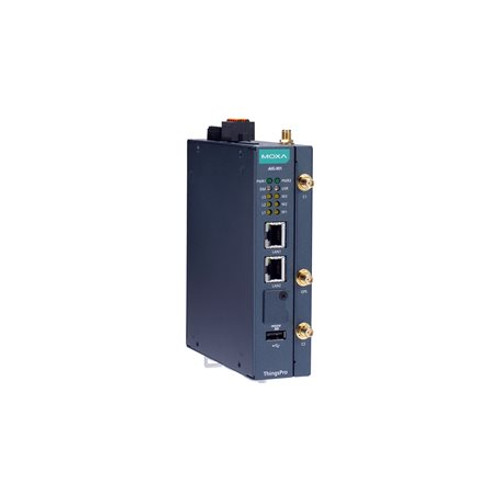

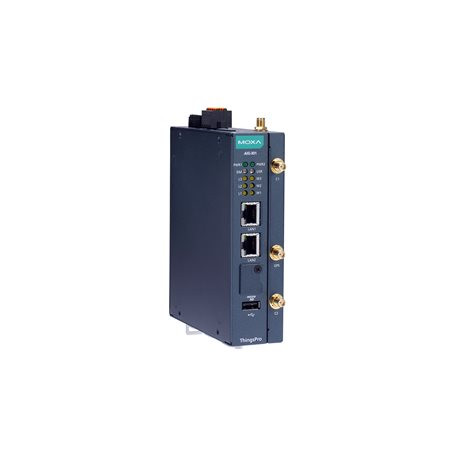

AIG-301US, EU, AP, and CN Models
