ANT-WDB-ANM-0502

Moxa ANT-WDB-ANM-0502

ANT-WDB-ANM-0502 Series
2.4/5GHz, Dual-band omni-directional antenna, 5/2 dBi, N-type(male)

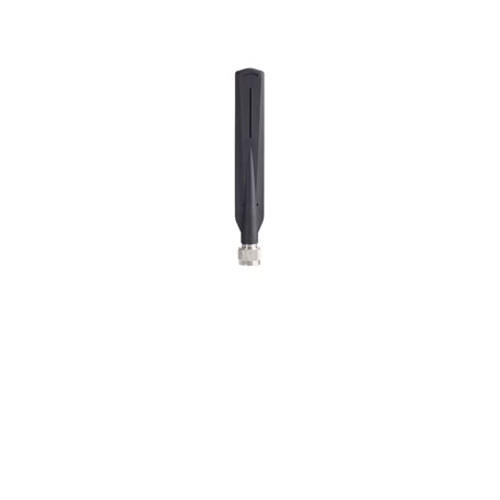

Image of ANT-WDB-ANM-0502
Free Ground Shipping on U.S. Orders over $99 $34.19 ON BACKORDER Estimated Availability: 02/21/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ant-wdb-anm-0502-series-datasheet-v1.1.pdf
  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Lightweight
  • Housing provides IP67 protection
  • -40 to 80°C operating temperature range
View More
Overview Specifications Accessories

Introduction

The ANT-WDB-ANM-0502 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP67-rated housing, pole-mounting support and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.

Field Patterns

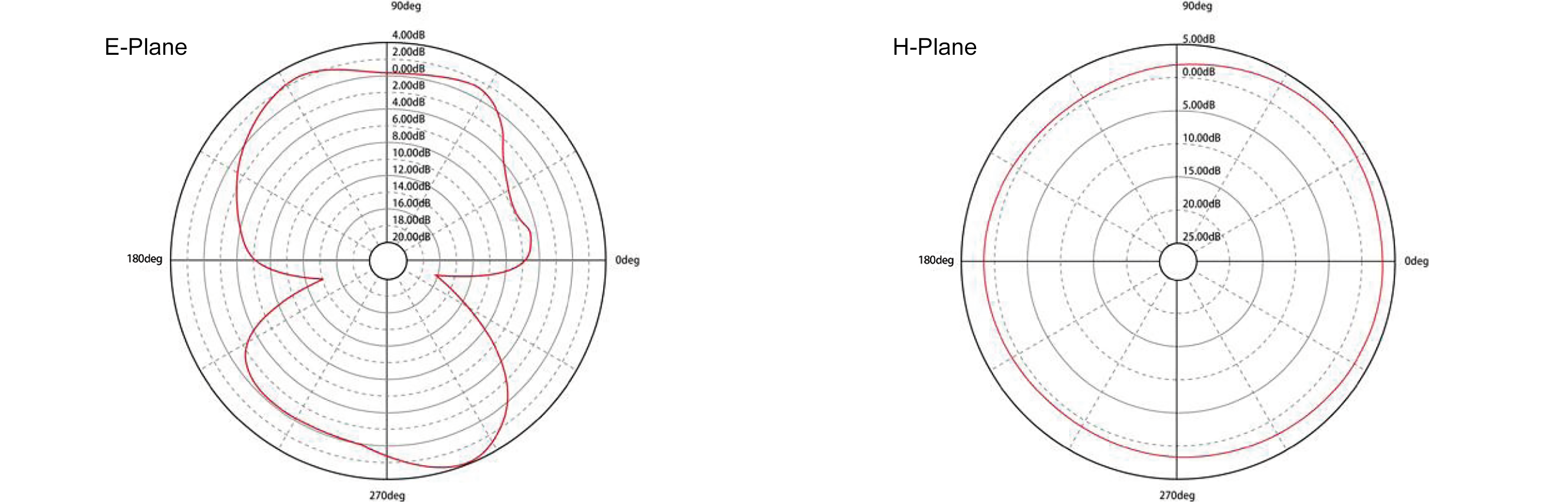

Frequency: 2.4 GHz

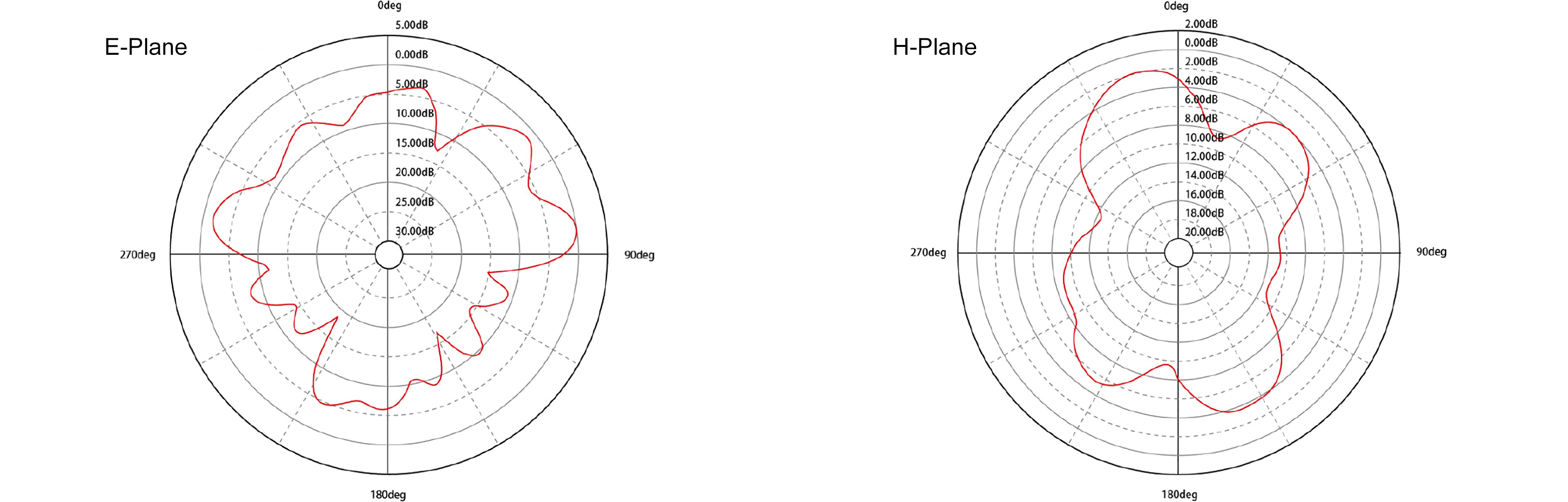

Frequency: 5 GHz
