ANT-WDB-ARM-0202

Moxa ANT-WDB-ARM-0202

ANT-WDB-ARM-0202 Series
2.4/5GHz, dual-band omni-directional antenna, 1.8/1.8 dBi, RP-SMA (male) connector *2 pieces needed for each MC-1200/WiFi ( P/N: 1710010100215 )

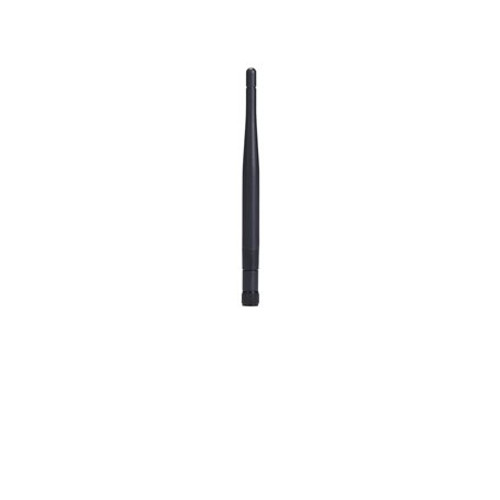

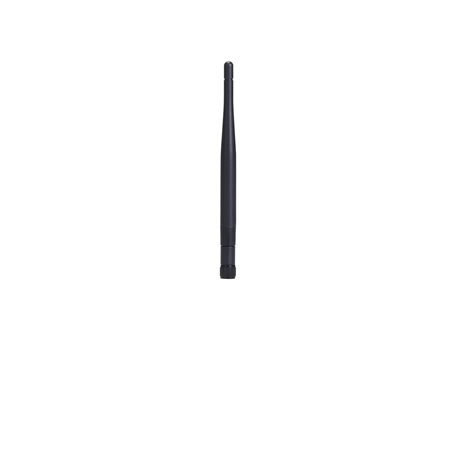

Image of ANT-WDB-ARM-0202
Free Ground Shipping over $99 or Free 2-Day Shipping over $499 on U.S. Orders! $10.60 IN STOCK: 6 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-ant-wdb-arm-0202-series-datasheet-v1.0.pdf
  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • RP-SMA-type (male) connector
View More
Overview Specifications

Introduction

The ANT-WDB-ARM-0202 is an omni-directional lightweight compact dual-band indoor antenna with RP-SMA (male) connectors. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 75°C.

Field Patterns

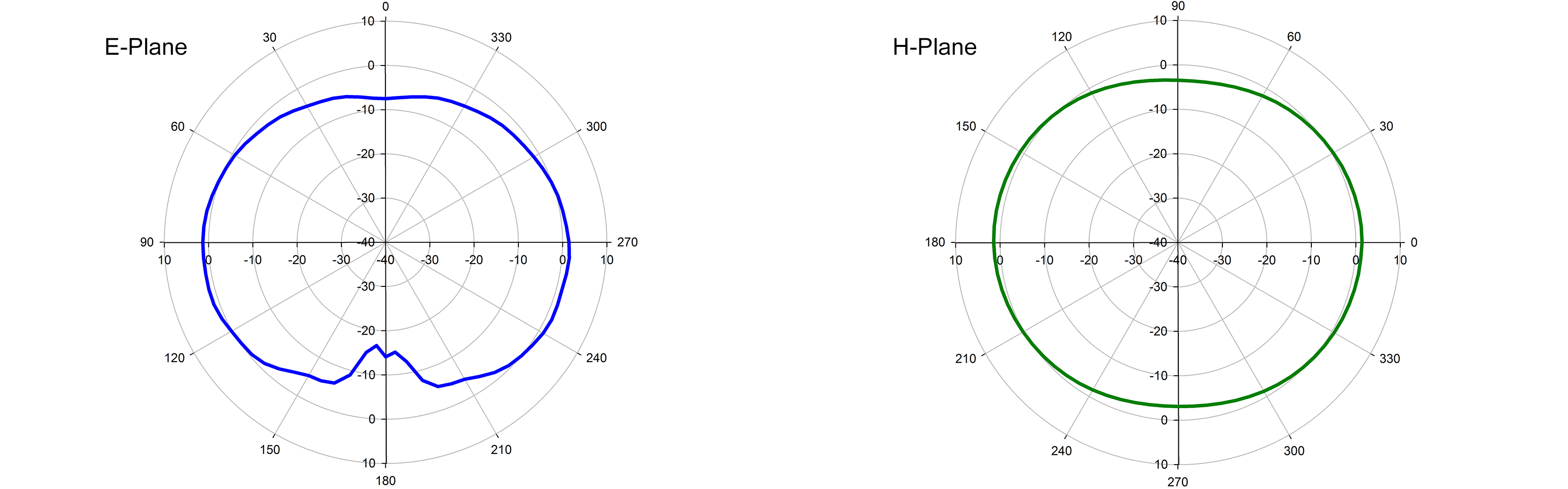

Frequency: 2.4 GHz

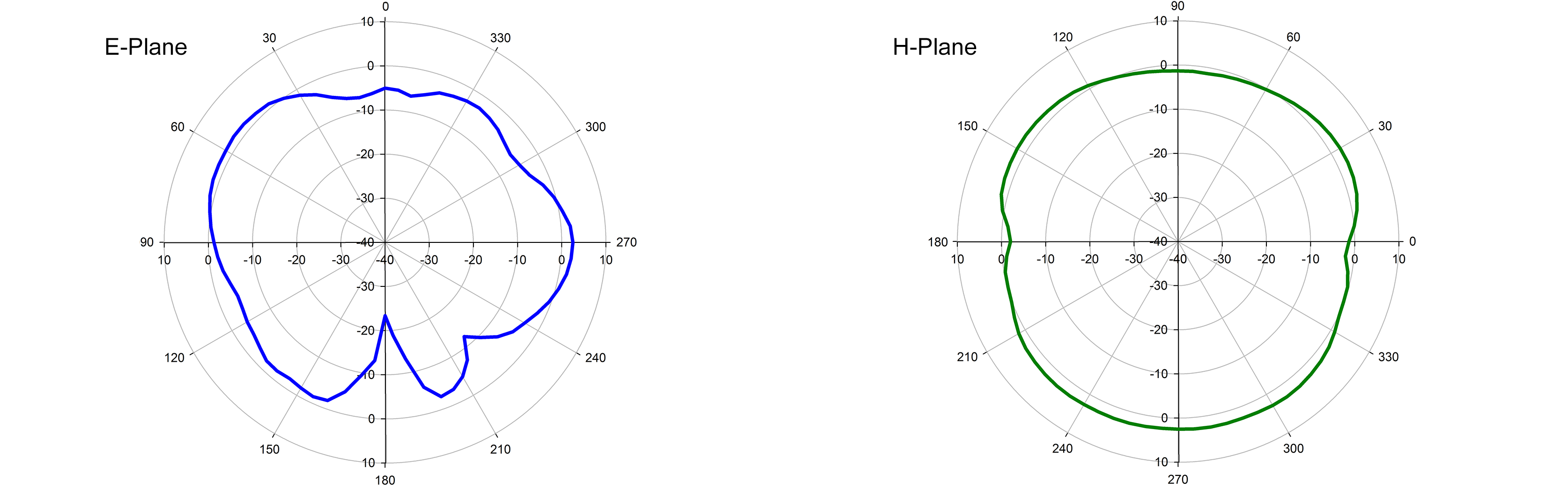

Frequency: 5 GHz
Collapse All -
Specifications
Specifications
No data available
