ANT-WSB-PNF-12-02 Series
12 dBi at 2.4 GHz, N-type (female), single-band directional antenna

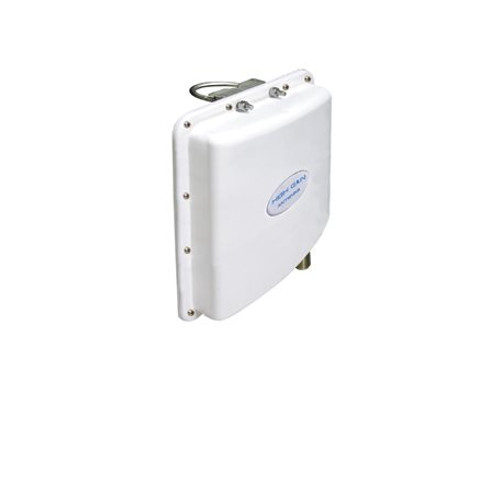

Image of ANT-WSB-PNF-12-02
Free Ground Shipping on U.S. Orders over $99 $256.99 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ant-wsb-pnf-12-02-series-datasheet-v1.0.pdf
  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Pole-mounting support
  • Housing provides IP65 protection
  • -40 to 85°C operating temperature range
View More
Overview Specifications Accessories

Introduction

The ANT-WSB-PNF-12-02is asingle-band high-gain directional panel antenna with a waterproofN-type female connector. The antenna provides a gain of 12 dBi at2.4 GHz. The IP65-rated housing, pole-mounting support, and wide operatingtemperature range of -40 to 85°C make it suitable for outdoor use.

Field Patterns

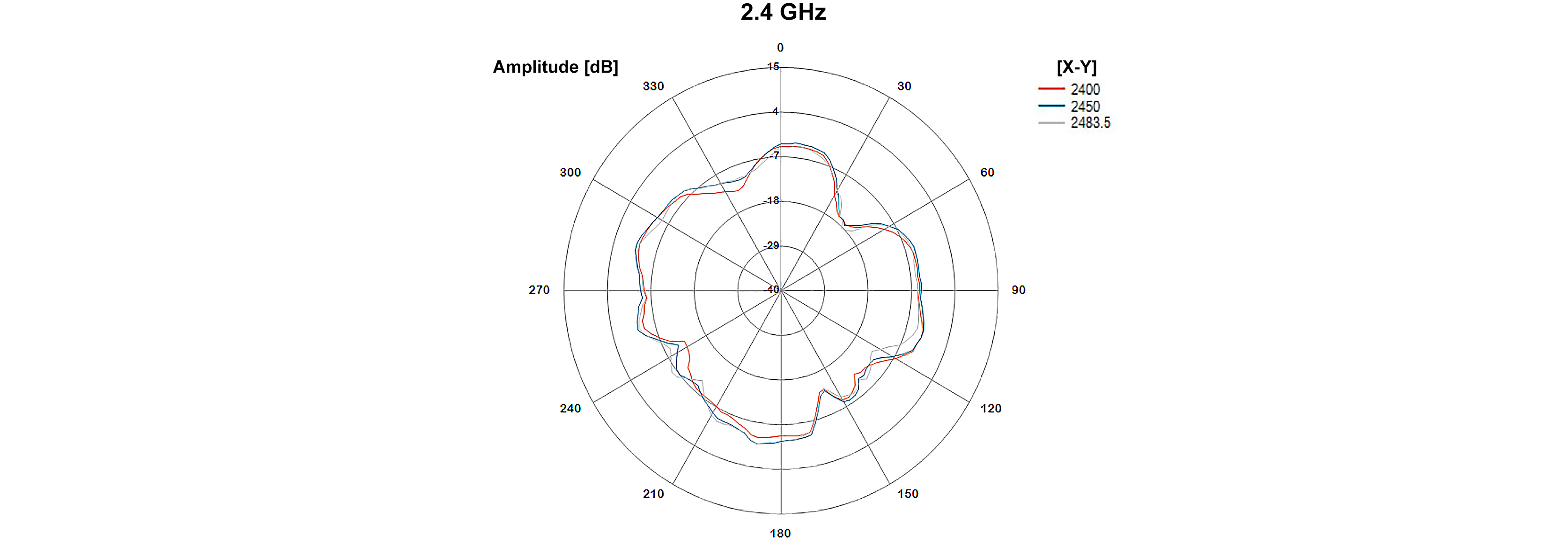

X-Y Plane

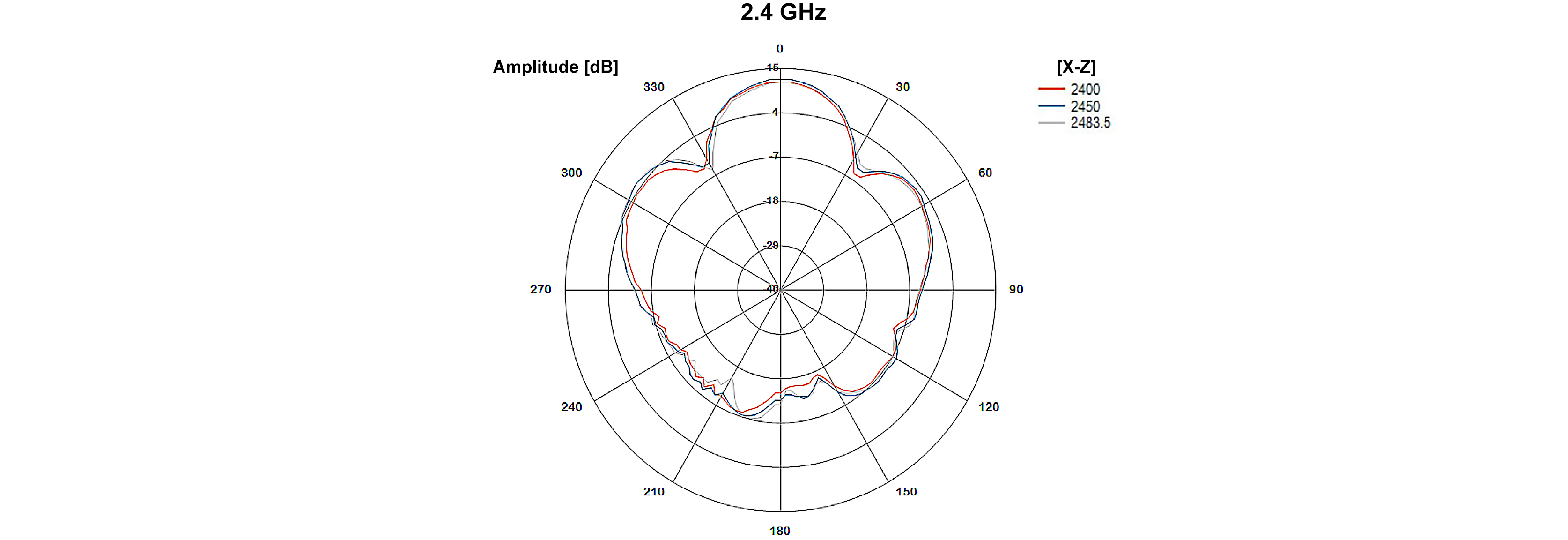

X-Z Plane

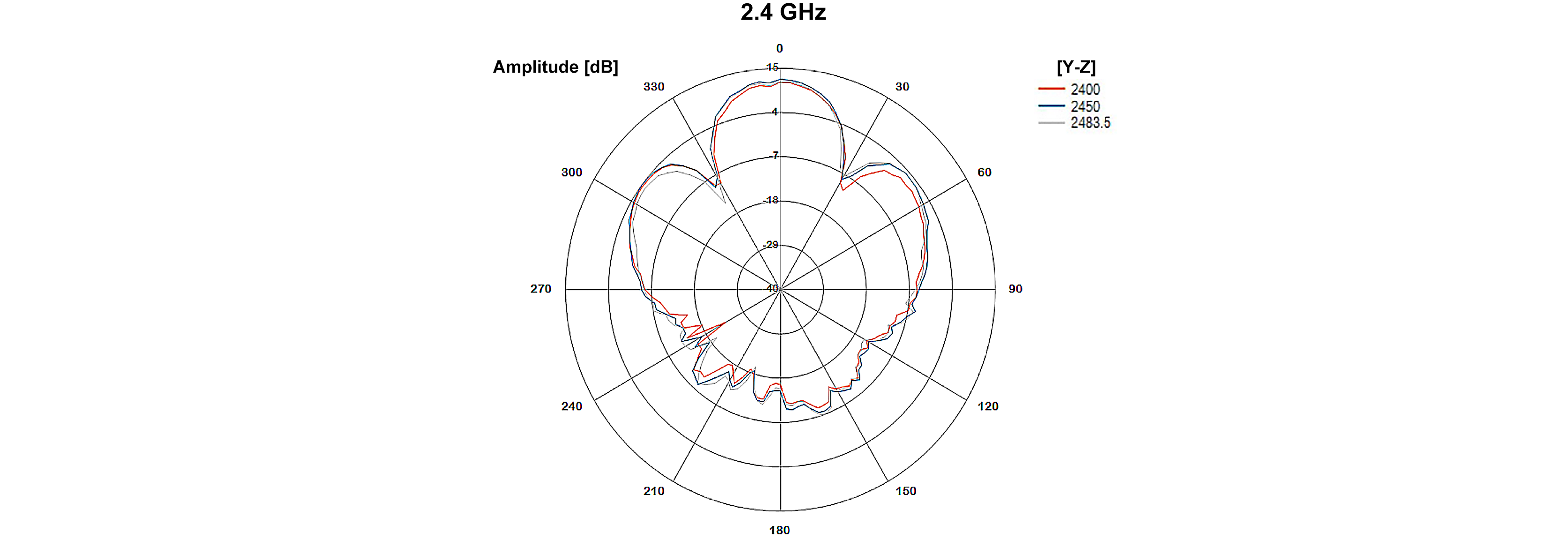

Y-Z Plane
