AWK-3131A-SSC-RTG-US-CT-T

Moxa AWK-3131A-SSC-RTG-US-CT-T

AWK-3131A-RTG Series
Rail Trackside In-door Single Radio, 802.11n Access Point/Client, M12/SC, US band, IP30, -40 to 75°C, coating

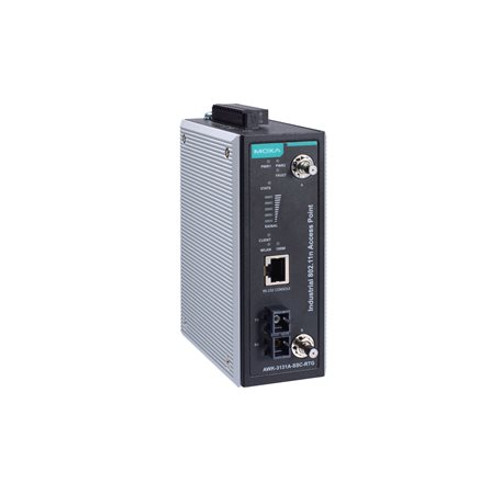

Image of AWK-3131A-SSC-RTG-US-CT-T
Free Ground Shipping on U.S. Orders over $99 $2,219.44 ON BACKORDER Estimated Availability: 02/24/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-awk-3131a-rtg-series-datasheet-v3.1.pdf
  • IEEE 802.11a/b/g/n compliant
  • M12 anti-vibration connectors
  • SC optical fiber connection
  • QoS (WMM) and VLAN for efficient network traffic
  • Controller-based Turbo Roaming (less than 50 ms) The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • Wide-temperature models available for -40 to 75°C environments
View More
Overview Specifications Accessories

Introduction

The AWK-3131A-RTG 2-in-1 industrial AP/client devices are designedspecifically for train-to-ground communication and can perform reliablyeven when the trains reach a speed of 120 km/h. The AWK-3131A-RTGcomplies with a portion of EN 50155 specifications, covering operatingtemperature, power input voltage, surge, ESD, and vibration, makingthe AWK-3131A-RTG suitable for a variety of industrial applications.Installation is easy, with either DIN-rail mounting or distributionboxes, and the DIN-rail mounting capability, wide operating temperaturerange, and IP30 housing with LED indicators make the AWK-3131A-RTGa convenient yet reliable solution for any rolling stock application.

Advanced Security

  • 64-bit and 128-bitWEP (Wired Equivalent Privacy)

  • Enable/disableSSID broadcasts

  • WPA/WPA2 (Wi-FiProtected Access) and 802.11i support

  • IEEE802.1X/RADIUSsupport

  • Powerful filtersfor access control

Designed forTrain-to-Ground Applications

  • Client-based TurboRoaming handover time

  • Controller-basedTurbo Roaming handover time (available only when used with the WAC-1001or WAC-2004)

  • Multiple roamingparameters for different installation structures and antenna types
