AWK-3131A-US-T

Moxa AWK-3131A-US-T

AWK-3131A Series
Industrial 802.11a/b/g/n Access Point, US Band, -40°C to 75°C

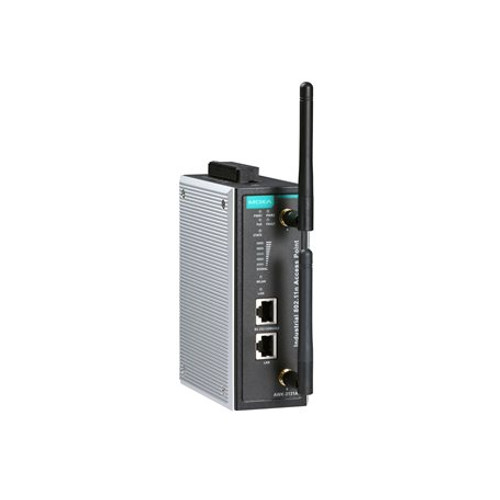

Image of AWK-3131A-US-T
Free Ground Shipping on U.S. Orders over $99 $1,296.65 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-awk-3131a-series-datasheet-v2.9.pdf
  • IEEE 802.11a/b/g/n AP/bridge/client support
  • Easy setup and deployment with AeroMag
  • Millisecond-level Client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
  • Complete redundancy with AeroLink Protection
  • Easy network setup with Network Address Translation (NAT)
  • Integrated antenna and power isolation
  • -40 to 75°C wide operating temperature range (-T models)
  • 5 GHz DFS channel support
View More
Overview Specifications Accessories

Introduction

The AWK-3131A 3-in-1 industrial wireless AP/bridge/clientmeets the growing need for faster data transmission speeds by supportingIEEE 802.11n technology with a net data rate of up to 300 Mbps. TheAWK-3131A is compliant with industrial standards and approvals coveringoperating temperature, power input voltage, surge, ESD, and vibration.The two redundant DC power inputs increase the reliability of thepower supply, and the AWK-3131A can be powered via PoE to make deploymenteasier. The AWK-3131A can operate on either the 2.4 or 5 GHz bandsand is backwards-compatible with existing 802.11a/b/g deploymentsto future-proof your wireless investments. The Wireless add-on forthe MXview network management utility visualizes the AWK's invisiblewireless connections to ensure wall-to-wall Wi-Fi connectivity.

Advanced 802.11n Industrial Wireless Solution

  • 802.11a/b/g/n compliant AP/bridge/client for flexible deployment

  • Software optimized for long-distance wireless communication with up to 1 km line of sight and external high-gain antenna (available only on 5 GHz)

  • Supports 60 clients connected concurrently

  • DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

AdvancedWireless Technology

  • AeroMagsupports error-free setup of your industrial applications’ fundamentalWLAN settings

  • Seamlessroaming with client-based Turbo Roaming The Turbo Roaming recoverytime indicated herein is an average of test results documented, inoptimized conditions, across APs configured with interference-free20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters.The clients are configured with 3-channel roaming at 100 Kbps trafficload. Other conditions may also impact roaming performance. For moreinformation about Turbo Roaming parameter settings, refer to the productmanual. for

  • SupportsAeroLink Protection for creating a redundant wireless link (

Industrial Ruggedness

  • Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference

  • Hazardous location wireless communication with Class I Div. II and ATEX Zone 2 certifications

  • -40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

WirelessNetwork Management With MXview Wireless

  • Dynamictopology view shows the status of wireless links and connection changesat a glance

  • Visual,interactive roaming playback function to review the roaming historyof clients

  • Detaileddevice information and performance indicator charts for individualAP and client devices
