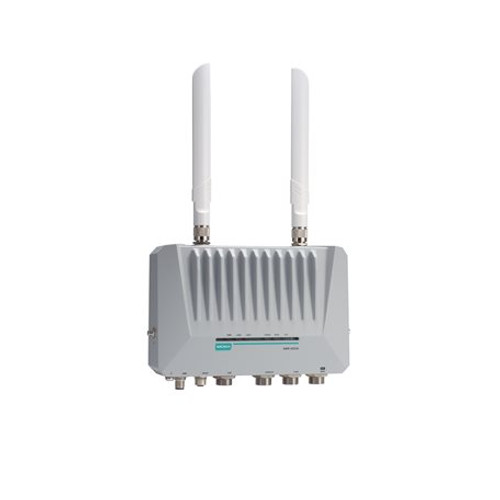

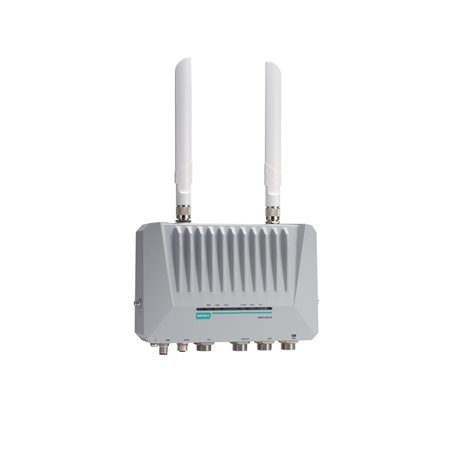

AWK-4252A Series

MOXA AWK-4252A Series

Outdoor industrial IEEE 802.11a/b/g/n/ac wireless AP/bridge/client
AWK-4252A Series
VIEW MODELS
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-awk-4252a-series-datasheet-v2.5.pdf
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
  • Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Universal (UN) models with configurable country or region code for more flexible deployment
  • Easy network setup with Network Address Translation (NAT)
  • Millisecond-level Client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
  • Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
  • IP68-rated weatherproof housing designed for outdoor applications and -40 to 75°C wide operating temperature range
  • Integrated antenna isolation
  • IEC 62443-4-2 Security Level 1 certified
  • -40 to 75°C operating temperature range
View More

Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The AWK-4252A Series 3-in-1 industrial wireless AP/bridge/clientis designed to meet the growing need for faster data transmissionspeeds through IEEE 802.11ac technology for aggregated data ratesof up to 1.267 Gbps. The AWK-4252A is compliant with industrial standardsand approvals covering operating temperature, power input voltage,surge, ESD, and vibration. The two redundant DC power inputs increasethe reliability of the power supply, and the AWK-4252A can be poweredvia PoE to facilitate flexible deployment. The AWK-4252A can operateconcurrently on both the 2.4 and 5 GHz bands and is backwards-compatiblewith existing 802.11a/b/g/n deployments to future-proof your wirelessinvestments.

IEC 62443-4-2 Security Level 1 Certified

The US and UN models of the series are IEC 62443-4-2Security Level 1 certified (FR_Cyber10095) helping our customersmeet the compliance requirements of secure industrial network design.

Advanced802.11ac Industrial Wireless Solution

  • 802.11a/b/g/n/accompliant AP/bridge/client for flexible deployment

  • DFSchannel support allows a wider range of 5 GHz channel selection toavoid interference from existing wireless infrastructure

AdvancedWireless Technology

  • Seamlessroaming with client-based Turbo Roaming The Turbo Roaming recoverytime indicated herein is an average of test results documented, inoptimized conditions, across APs configured with interference-free20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters.The clients are configured with 3-channel roaming at 100 Kbps trafficload. Other conditions may also impact roaming performance. For moreinformation about Turbo Roaming parameter settings, refer to the productmanual. for 150 ms roaming recovery time between APs (ClientMode)

IndustrialRuggedness

  • -40to 75°C wide operating temperature for smooth wireless communicationin harsh environments

  • Enhancedantenna port isolation protection designed to withstand up to 30 kVESD and 6 kV surge protection
