BXP-A101-E4-T

BXP-A101-E4-T

BXP-A101 Series
Box type, Atom x6425E, DDR4, COMx2, LANx2, USBx2, DIOx4, HDMI, 12/24 VDC
Free Ground Shipping on U.S. Orders over $99 $1,248.00 ON BACKORDER Estimated Availability: 09/01/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-bxp-a101-series-datasheet-v1.0.pdf
  • Box-type computer with fanless design
  • Intel Atom® X Series processor
  • Compact size to fit most field applications
  • -30 to 70°C operating temperature range
  • External dual storage with a removable cover design for easy maintenance
View More
Overview Specifications Accessories

Introduction

The BXP-A101wall-mount computers are powered by an Intel Atom® X processor. Thecomputers come with 2 software-selectable RS-232/422/485 serial ports,2 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs.A dual-storage design that includes CFast and SD slots enables easystorage expansion. A removeable cover design enables users to quicklyand easily swap their storage in any location, delivering one moreuser-friendly feature in a reliable, durable, and versatile platform.

The BXP-A101 compact wall-mountable computerscome in a fanless design and can withstand a temperature range of-30 to 70°C, making them a good fit for harsh operating environments.The built-in TPM 2.0 module secures the platform from unauthorizedaccess. The BXP-A101 is an intelligent computing solution that perfectlyfulfills both OT and IT requirements of industrial environments.

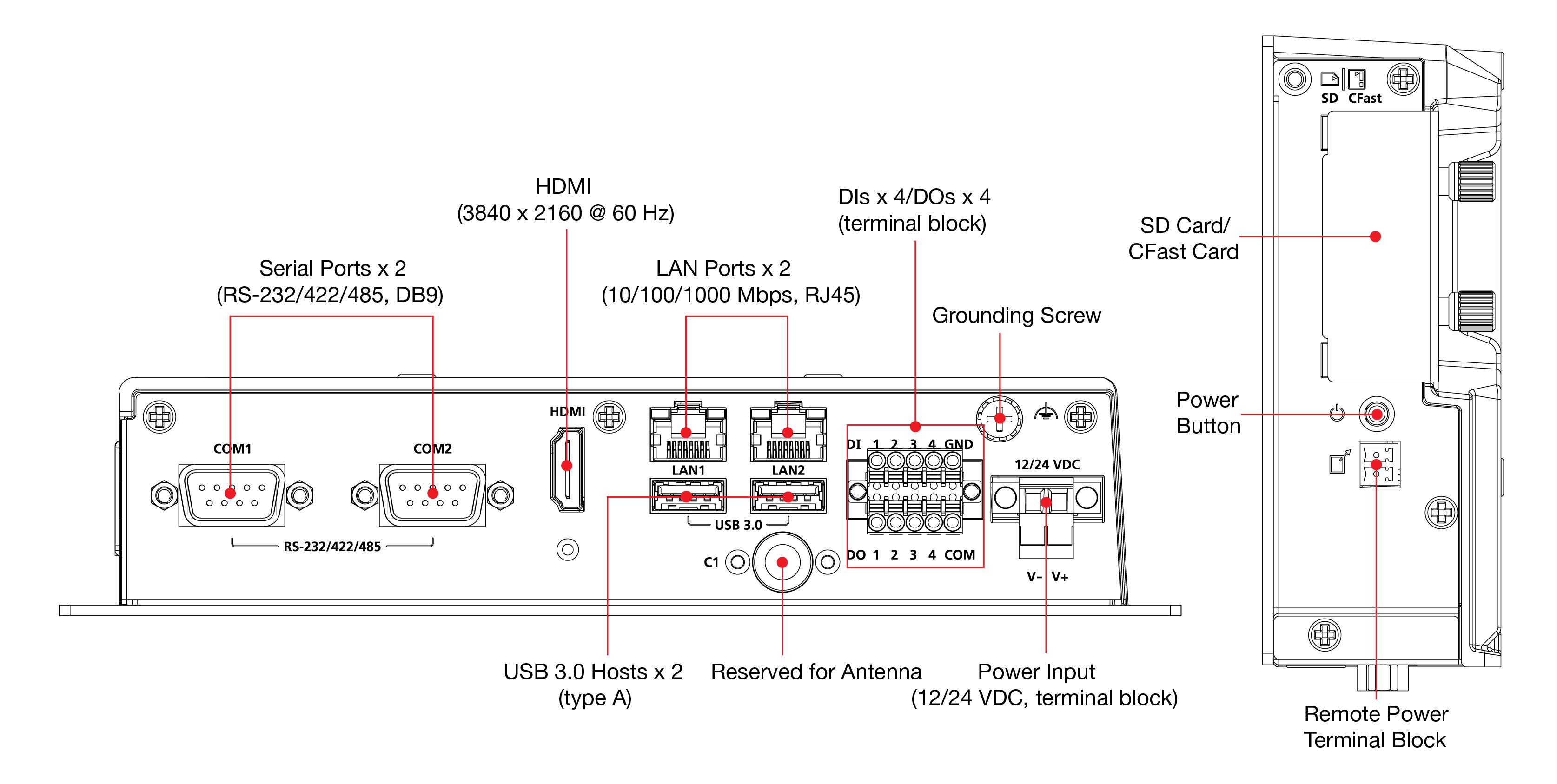

Appearance
