Moxa BXP-C100-C5-8C-T

BXP-C100 Series

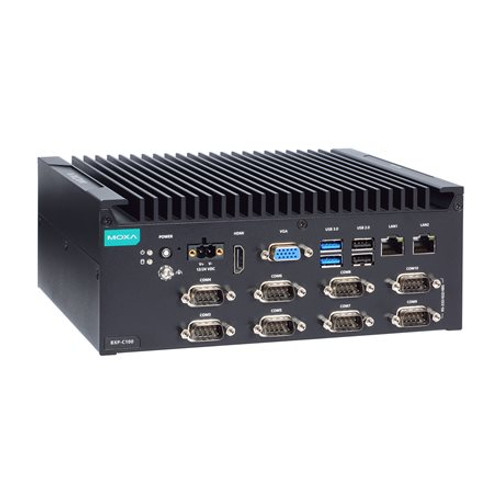

BXP-C100-C5-8C-T ; Box computer, Core i5-1145G7E, 8GB DDR4, COMx10, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDC

Free Ground Shipping on U.S. Orders over $99 $2,161.00 ON BACKORDER Estimated Availability: 02/21/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART

Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-bxp-c100-series-datasheet-v1.1.pdf

Box-type computer with fanless design
11th Gen Intel® Celeron® or Intel® Core® processor
Rich interface options for up to 10 serial and 10 LAN ports
Compact size to fit most field applications
-30 to 60°C operating temperature range

Overview Specifications Accessories

Introduction

The BXP-C100wall-mount computers are powered by a 11th Gen Intel® Celeron® orIntel® Core™i5, or i7 processor. The computers come with a rich setof interface options including up to 10 software-selectable RS-232/422/485serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and4 digital outputs. The communication interfaces are located on thefront and rear sides of the product, enabling easy access and expansionfor industrial applications. A dual-storage design that includes CFastand SD slots enables easy storage expansion. The unique battery fastenercover design for the battery slot secures the battery in place andensures stability in all operating environments.

The BXP-C100 compact wall-mountable computerscome in a fanless design and can withstand a temperature range of-30 to 60°C, making them a good fit for harsh operating environments.The built-in TPM 2.0 module secures the platform from unauthorizedaccess. The BXP-C100 Series is an intelligent computing solution thatfulfills both OT and IT requirements in industrial environments.
