CA-108-T

Moxa CA-108-T

CA-108 Series
8 Port PC/104 Board, RS-232, Wide Temperature

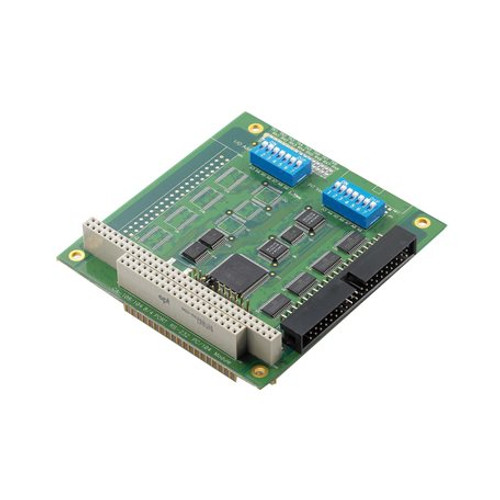

Image of CA-108-T
Free Ground Shipping on U.S. Orders over $99 $292.11 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ca-108-series-datasheet-v1.4.pdf
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip hardware and software flow control
  • IRQ and I/O settings are jumper and DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
  • Wide-temperature model available for -40 to 85°C environments
View More
Overview Specifications Accessories

Introduction

The CA-108 PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 8 RS-232 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.
