CA-134I

Moxa CA-134I

CA-134I Series
4 Port PC/104 Board, RS-422/485, w/ Isolation

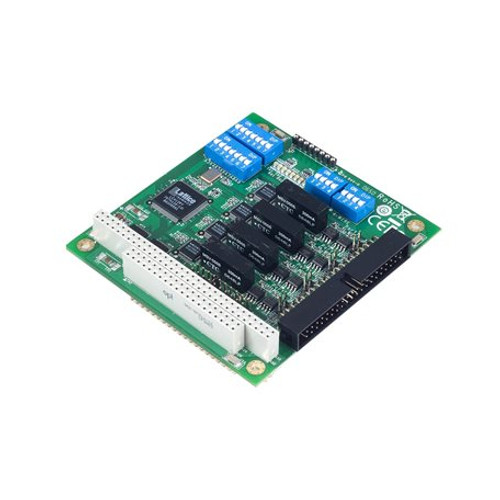

Image of CA-134I
Free Ground Shipping on U.S. Orders over $99 $391.89 ON BACKORDER Estimated Availability: 04/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ca-134i-series-datasheet-v1.2.pdf
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip software flow control
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
  • Wide-temperature model available for -40 to 85°C environments
View More
Overview Specifications Accessories

Introduction

The CA-134I PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 4 RS-422/485 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.
