CB-134I Series

Moxa CB-134I Series

4-port RS-422/485 PC/104-Plus modules with 2 kV isolation
CB-134I Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cb-134i-series-datasheet-v1.2.pdf
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip software flow control
  • Serial interface is DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows XP/Vista/7, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
  • Wide-temperature model available for -40 to 85°C environments
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

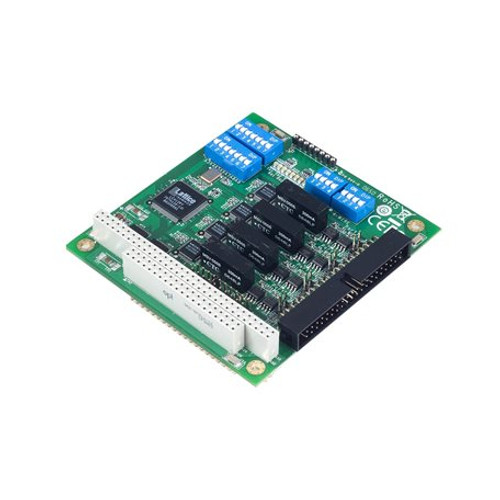

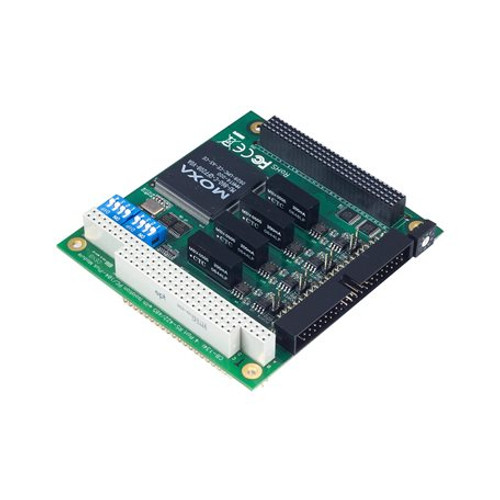

The CB-134I PC/104-Plus modules come with 4 RS-422/485 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-134I modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
