CCG-1510-T

CCG-1510-T

CCG-1500 Series
CCG-1510-T ; Industrial private 5G cellular gateway, n1, n3, n28, n41, n48, n77, n78 bands, IP30, -40 to 70°C operating temperature

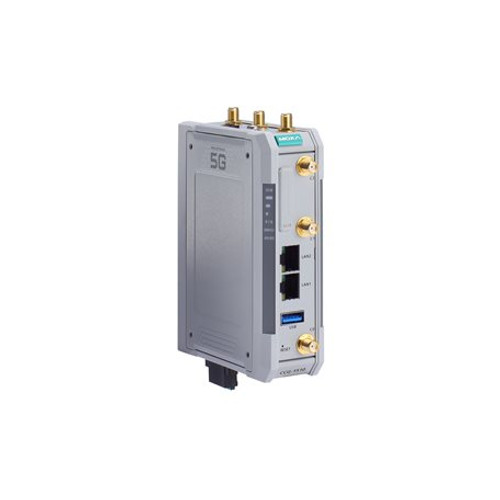

Image of CCG-1510-T
Free Ground Shipping on U.S. Orders over $99 $1,499.00 ON BACKORDER Estimated Availability: 02/21/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ccg-1500-series-datasheet-v1.3.pdf
  • Qualcomm® Snapdragon™ X55
  • 5G-ready media converter with industrial-grade FCC/UL/NCC/JET/Telec certifications
  • Dual SIM slots
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • 1 RS-232/422/485 serial port
  • LEDs for easy installation and maintenance
  • -40 to 70°C wide-temperature design
View More
Overview Specifications Accessories

Introduction

The CCG-1500 Series is designed both as a media converterand a protocol converter. The media converter includes 5G-to-ethernetand 5G-to-serial ports, which can be used for public as well as privatenetworks. The protocol converter is mainly for Modbus TCP/RTU conversion.The 5G interface can use Modbus TCP while the serial interface canprocess Modbus RTU.

The CCG-1500is built around a Qualcomm® Snapdragon™ X55 Cortex-A7 processor thathas been optimized for use in media-conversion scenarios, and is alsowidely applicable to a variety of industrial solutions. With flexibleinterfacing options, this tiny, embedded converter is a reliable andsecure gateway for data processing at field sites as well as a usefulcommunications platform for large-scale deployments.

Wide temperature 5G-enabled modelsare available for extended temperature applications. All units arethoroughly tested in a testing chamber, guaranteeing that the 5G-enabledcomputing platforms are suitable for wide-temperature applications.

Appearance

CCG-1510 Front View

CCG-1520 Front View

CCG-1510Rear View

CCG-1520Rear View

Top View

CCG-1510Bottom View

CCG-1520Bottom View
