CP-102N Series

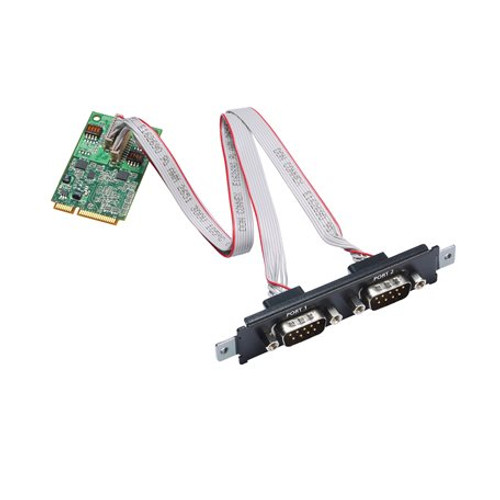

Moxa CP-102N Series

2-port RS-232 Mini PCI Express boards
CP-102N Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-102n-series-datasheet-v1.0.pdf
  • Mini PCIe interface support
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The CP-102N is a multiport serial board designed forindustrial automation system and industrial PC manufacturers. It iscompatible with any Mini PCI Express slot. The board requires onlya 3.3 VDC power supply, which means it can work with host computersranging from DIN-rail PCs to standard-sized PCs.

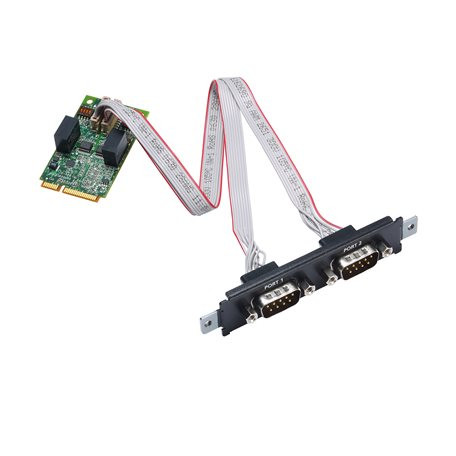

The CP-102N is a top choice ofindustrial automation engineers and system integrators and supportsWindows and Linux operating systems. In addition, the four RS-232serial ports support a fast 921.6 kbps baudrate. The CP-102N providesfull-modem control signals to ensure compatibility with a wide rangeof serial peripherals. It also provides 1 kV line-to-line surge protectionand 2.5 kV isolation (for the I model), ensuring compatibility ina wide range of industrial environments.

A New Family of Mini PCI Express Multiport Serial Boards for FasterTime to Market

Moxa’s new Mini PCI Express multiport serial board familyfulfills the need for customized expansion and enables faster timeto market for OEMs and system integrators. It includes Isolated andnon-Isolated RS-232/422/485 communication cards for various applications.

The serial boards featurehigh performance 16C950 compatible UARTs and are available in 4-portand 2-port versions compatible with all popular operating systems.They support data rates of up to 921.6 kbps and have 128-byte transmitand receive FIFOs. The serial boards can operate in the -40 to 85˚Ctemperature range. Door backets are included in the package for allmodels, enabling the installation of the serial boards in a Moxa IPCexpansion slot.
