CP-104EL-A-DB9M

Moxa CP-104EL-A-DB9M

CP-104EL-A Series
4-port RS-232 PCI low profile Express x1 serial board (includes DB9 male cable)

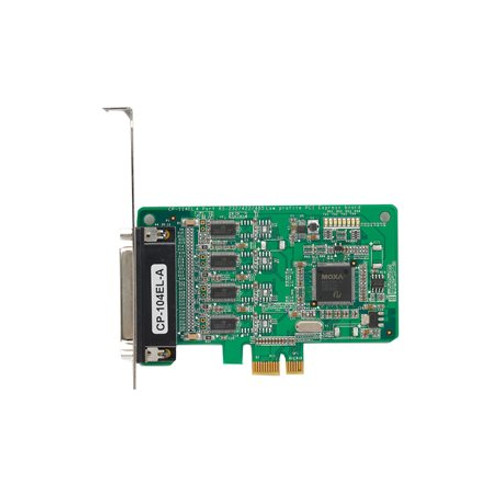

Image of CP-104EL-A-DB9M
Free Ground Shipping on U.S. Orders over $99 $220.69 IN STOCK: 16 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-cp-104el-a-series-datasheet-v1.2.pdf
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
View More
Overview Specifications Accessories

Introduction

The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s 4 RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.

Smaller Form Factor

The CP-104EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-104EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
