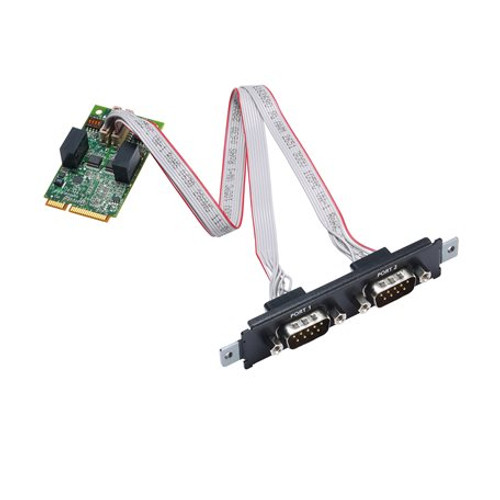

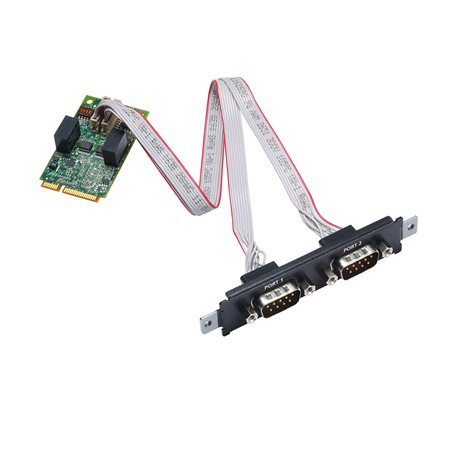

CP-112N-T

Introduction

The CP-112N is a Mini PCI Express multiport serial boarddesigned for various applications such as industrial automation systemsand for industrial PC manufacturers. The CP-112N is compatible withmost Mini PCI Express slots. The board requires only a 3.3 VDC powersupply, which means it can work with host computers ranging from DIN-railPCs to standard-sized PCs.

The CP-112N is a top choice of industrial automationengineers and system integrators and supports Windows and Linux operatingsystems. In addition, the two RS-232/422/485 serial ports supporta fast 921.6 kbps baudrate. The CP-112N provides full-modem controlsignals to ensure compatibility with a wide range of serial peripherals.The board also provides 1 kV line-to-line surge protection, ensuringcompatibility in a wide range of industrial environments.

A New Family of Mini PCI Express Multiport Serial Boards for FasterTime to Market

Moxa’s new Mini PCI Express multiport serial board familyfulfills the need for customized expansion and enables faster timeto market for OEMs and system integrators. It includes Isolated andnon-Isolated RS-232/422/485 communication cards for various applications.

The serial boards featurehigh performance 16C950 compatible UARTs and are available in 4-portand 2-port versions compatible with all popular operating systems.They support data rates of up to 921.6 kbps and have 128-byte transmitand receive FIFOs. The serial boards can operate in the -40 to 85˚Ctemperature range. Door brackets are included in the package for allmodels, enabling the installation of the serial boards in Moxa IPCexpansion slots.
