CP-114EL-I

Moxa CP-114EL-I

CP-114EL Series
4 Port PCIe Board, w/o Cable, RS-232/422/485, w/ Isolation, Low Profile

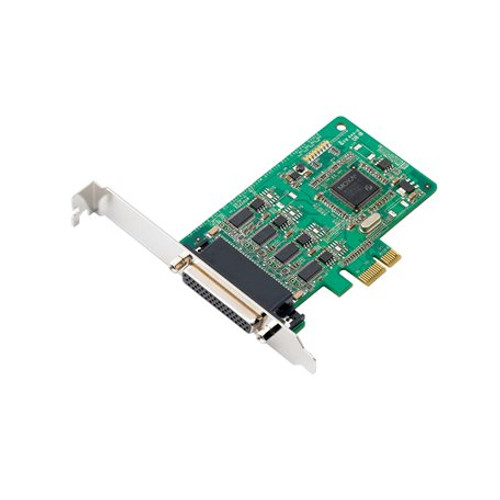

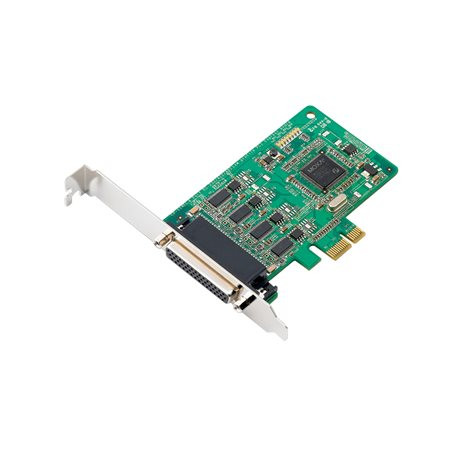

Image of CP-114EL-I
Free Ground Shipping on U.S. Orders over $99 $582.35 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-114el-series-datasheet-v1.2.pdf
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
View More
Overview Specifications Accessories

Introduction

The CP-114EL Series of smart, 4-port PCI Express boardsdesigned for POS and ATM applications are a top choice of industrialautomation engineers and system integrators, and support many differentoperating systems, including Windows, Linux, and UNIX. In addition,each of the boards’ 4 RS-232/422/485 serial ports supports a fast921.6 kbps baudrate. The CP-114EL Series provides full modem controlsignals to ensure compatibility with a wide range of serial peripherals,and their PCI Express x1 classification allows the boards to be installedin any PCI Express slot.

Smaller Form Factor

The CP-114EL Series uses low-profile boards that are compatiblewith any PCI Express slot. The boards require only a 3.3 VDC powersupply, which means that the boards fit any host computer, rangingfrom shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operatingsystems, and the CP-114EL Series is no exception. Reliable Windowsand Linux drivers are provided for all Moxa boards, and other operatingsystems, such as WEPOS, are also supported for embedded integration.
