CP-132EL Series

Moxa CP-132EL Series

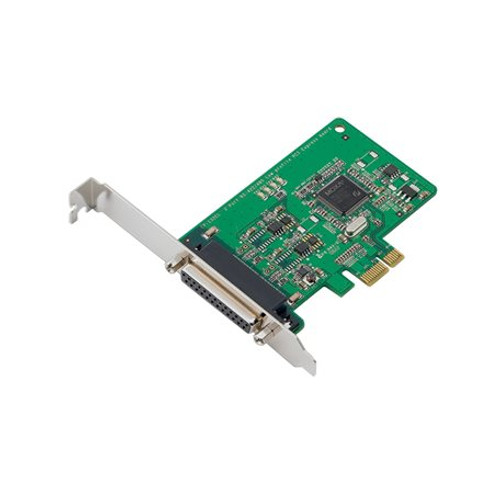

2-port RS-422/485 PCI Express boards with optional 2 kV isolation
CP-132EL Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-132el-series-datasheet-v1.2.pdf
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The CP-132EL Series of 2-port PCI Express boards aredesigned for industrial automation applications that require a long-distance,multipoint, PC-based data acquisition solution.

RS-485 Multidrop for up to 31 Devices Within 1.2 km

The CP-132EL Series boards have two RS-422/485 serialports, each of which can achieve data rates up to 921.6 kbps. In RS-485mode, the boards can connect up to 31 daisy-chained RS-485 deviceswithin a range of 1.2 km. For long-distance RS-485 communication,choose the CP-132EL-I model, which comes with 2 kV electrical isolationprotection to prevent equipment damage.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operatingsystems, and the CP-132EL Series is no exception. Reliable Windowsand Linux drivers are provided for all Moxa boards, and other operatingsystems, such as WEPOS, are also supported for embedded integration.
