CP-602E-I Series

Moxa CP-602E-I Series

2-port CAN interface PCI Express boards with 2 kV isolation
CP-602E-I Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-602e-i-series-datasheet-v1.1.pdf
  • Supports CAN 2.0A and CAN 2.0B
  • Two independent CAN communication ports
  • CAN transfer rate up to 1 Mbps
  • 2 kV electrical isolation
  • LED for transmit/receive status on each port
  • Optional 120-ohm terminal resistor for CAN bus network
  • DLL library and examples included
  • Windows driver provided
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

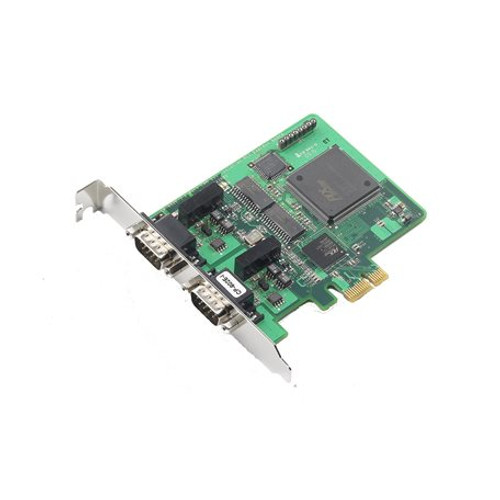

Moxa’sCP-602E-I CAN (Controller Area Network) interface board supports the PCI Express interface. As a standalone CAN controller, the CP-602E-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602E-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602E-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
