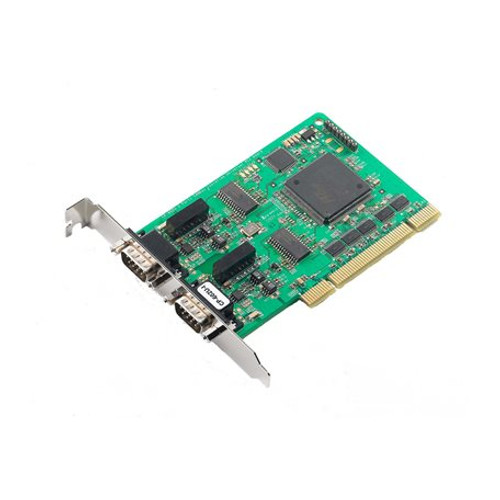

Moxa CP-602U-I Series

2-port CAN bus Universal PCI board with 2 kV electrical isolation
CP-602U-I Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-602u-i-series-datasheet-v1.1.pdf
  • Supports CAN 2.0A and CAN 2.0B
  • Two independent CAN communication ports
  • CAN transfer rate up to 1 Mbps
  • 2 kV electrical isolation
  • LED for transmit/receive status on each port
  • Optional 120-ohm terminal resistor for CAN bus network
  • DLL library and examples included
  • Windows driver provided
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

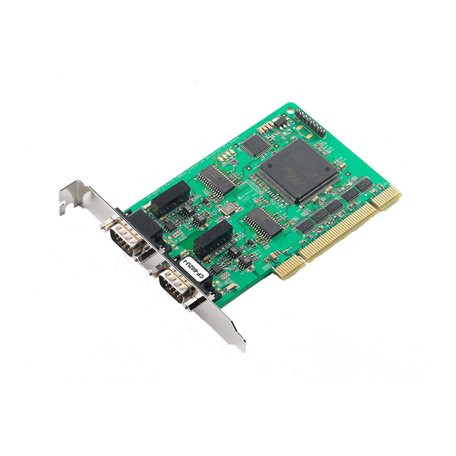

Moxa’s CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a standalone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
