CP-602U-I w/o Cable

Moxa CP-602U-I w/o Cable

CP-602U-I Series
2 Port CANbus Universal PCI Board, w/Isolation, 0 to 55℃ Temperature

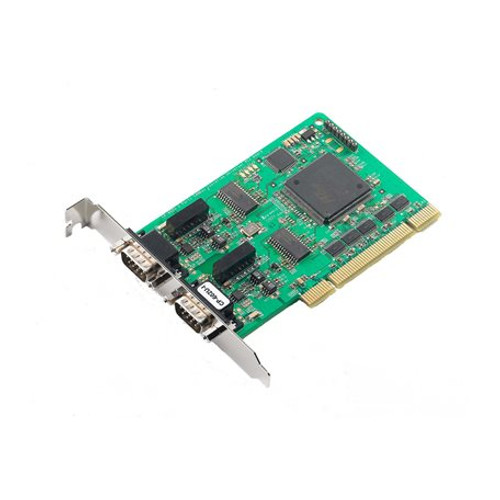

Image of CP-602U-I w/o Cable
Free Ground Shipping on U.S. Orders over $99 $451.54 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-602u-i-series-datasheet-v1.1.pdf
  • Supports CAN 2.0A and CAN 2.0B
  • Two independent CAN communication ports
  • CAN transfer rate up to 1 Mbps
  • 2 kV electrical isolation
  • LED for transmit/receive status on each port
  • Optional 120-ohm terminal resistor for CAN bus network
  • DLL library and examples included
  • Windows driver provided
View More
Overview Specifications Accessories

Introduction

Moxa’s CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a standalone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
