DA-681C-KL1-HH-T

Moxa DA-681C-KL1-HH-T

DA-681C Series
x86 1U Intel Celeron 3965U, dual power 100 to 240 VAC/VDC, -40 to 70°C temp, w/o RAM/SSD/OS

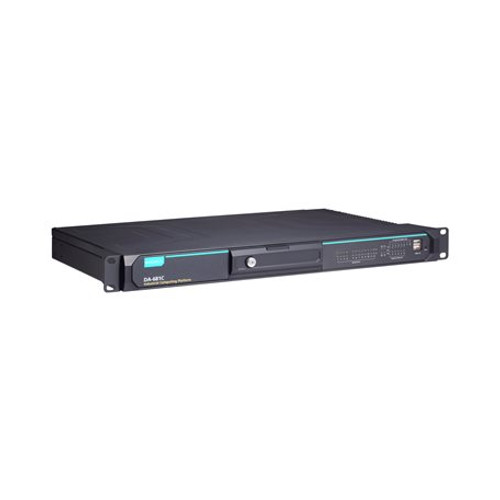

Image of DA-681C-KL1-HH-T
Free Ground Shipping on U.S. Orders over $99 $2,776.99 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-da-681c-series-datasheet-v1.7.pdf
  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
  • EN 50121-4 compliant for railway wayside applications
  • 7th Generation Intel® Core™ Processor
  • DDR4 memory slot; up to 32 GB capacity
  • Redundant power supply (100 to 240 VAC/VDC)
View More
Overview Specifications Accessories

Introduction

The DA-681C computer is built around an Intel®Celeron® or Intel® Core™ i3 CPU and comes with dual display ports(2 x HDMI), 5 USB ports, 6 Gigabit LAN ports, two 3-in -1 RS-232/422/485serial ports, 10 RS-485 serial ports, 6 digital input ports, and 2digital output ports. Additionally, one 2.5” HDD/SSD slot and onemSATA slot are included to enable storage expansion for industrialapplications that require large storage space for edge data acquisition.

With IEC 61850-3and IEEE 1613 compliance, the DA-681C is sure to deliver stable andreliable system operation for power applications. EN 50121-4 complianceconfirms that the DA-681C can deliver stable and reliable system operationsin rail wayside applications, such as station SCADA systems, waysidedisaster prevention, traction power, and signaling and safety systems,to provide an integrated view of your smart rail setup.

Appearance

Front View

Rear View
