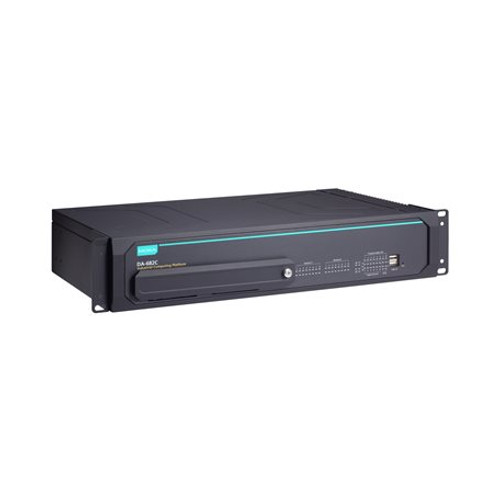

The DA-682C computer is built around an Intel®Celeron® or Intel® Core™ i3, i5, or i7 CPU and comes with dual displayports (2 x HDMI), 6 USB ports, 6 Gigabit LAN ports, two 3-in-1 RS-232/422/485serial ports, 6 digital input ports, and 2 digital output ports. TheDA-682C is equipped with 2 hot-swappable 2.5” HDD/SSD slots and supportsthe Intel® RST RAID 0/1 functionality.
Additional value and convenience is providedthrough a modular design with two independent slots for flexible systemintegration and expansion. Users have the option to add a varietyof different communications modules, including an 8-port RS232/422/485module and a 4-port 10/100/1000 Mbps LAN module.
With IEC 61850-3 and IEEE1613 compliance, the DA-682C is sure to deliver stable and reliablesystem operation for power applications. It also complies with theIEC 60255 standard, which covers the protection of electrical relaysin a smart substation. IEC 60255 is one of the most widely used standardsfor testing relays and protection equipment, and compliance with thestandard ensures that the DA-682C will work reliably and seamlesslywith IEDs as part of a robust substation automation system.
EN 50121-4 complianceconfirms that the DA-682C can deliver stable and reliable system operationsin rail wayside applications, such as station SCADA systems, waysidedisaster prevention, traction power, and signaling and safety systemsto provide an integrated view of your smart rail setup. The housingis a standard 2U, 19-inch wide, rack-mountable rugged enclosure. Thisrobust, rackmount design provides the hardened protection needed forindustrial environment applications.
Front View
Rear View
