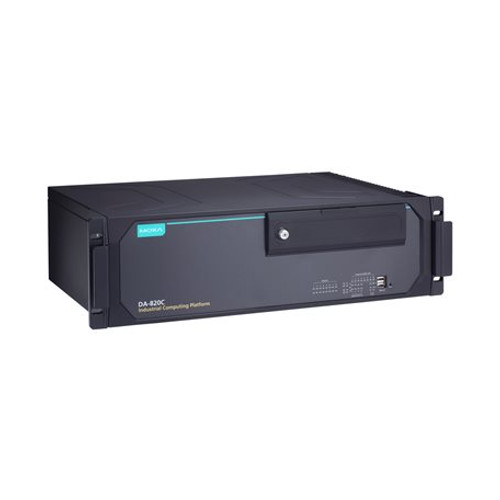

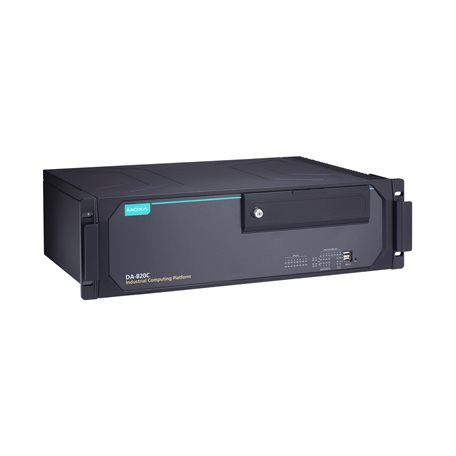

Moxa DA-820C-KL3-H-T

DA-820C Series

x86 3U Intel Core i3-7102E CPU, single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OS

Free Ground Shipping on U.S. Orders over $99 $3,907.84 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART

Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-da-820c-series-datasheet-v2.2.pdf

IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer
EN 50121-4 compliant for railway wayside applications
7th Generation Intel® Xeon® and Core™ Processor
Up to 64 GB RAM (two built-in SODIMM ECC DDR4 memory slots)
4 SSD slots, supports Intel® RST RAID 0/1/5/10
PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)
MMS server based on IEC 61850-90-4 for integration with Power SCADA
PTP (IEEE 1588) and IRIG-B time synchronization (with an IRIG-B expansion module)
Security options such as TPM 2.0, UEFI Secure Boot, and physical security
1 PCIe x16, 1 PCIe x4, 2 PCIe x1, and 1 PCI slots for expansion modules
Redundant power supply (100 to 240 VAC/VDC)

Overview Specifications Accessories

Introduction

The DA-820C Series is a high-performance 3U rackmount industrialcomputer built around a 7th Gen Intel® Core™ i3/i5/i7 or Intel® Xeon®processor and comes with 3 display ports (HDMI x 2, VGA x 1), 6 USBports, 4 gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports,6 DI ports, and 2 DO ports. The DA-820C is also equipped with 4 hotswappable 2.5” HDD/SSD slots that support Intel® RST RAID 0/1/5/10functionality and PTP/IRIG-B time synchronization.

The DA-820C complies with IEC-61850-3,IEEE 1613, IEC 60255, and EN50121-4 standards to deliver stable andreliable system operations for power applications.

IEC 60255 is one of the most widelyused standards for the protection of electrical relays in a smartsubstation. Compliance with the standard ensures that the DA-820Cwill work reliably and seamlessly with IEDs as part of a robust substationautomation system.

EN 50121-4compliance confirms that the DA-820C can deliver stable and reliablesystem operations in rail wayside applications, such as station SCADAsystems, wayside disaster prevention, traction power, and signalingand safety systems, to provide an integrated view of your smart railsetup.

ProactiveMonitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly,easy-to-use utility available with some Moxa computers to track anumber of system parameters. You can view the current values for keyparts by simply clicking on the icons corresponding to the parametersin a Windows-based user interface. User-defined key part indicators(KPIs) are used to monitor the computer’s key parts. Visible and/oraudio alerts are triggered automatically via relays and SNMP trapswhen these KPIs exceed their preset threshold values, making it extremelyconvenient for operators to avoid system downtime by setting up predictivemaintenance tasks well in advance.

The Proactive Monitoring tool is currently availablewith the following:DA-820C SeriesDA-720 SeriesMC-1200 SeriesMC-7400 Series
