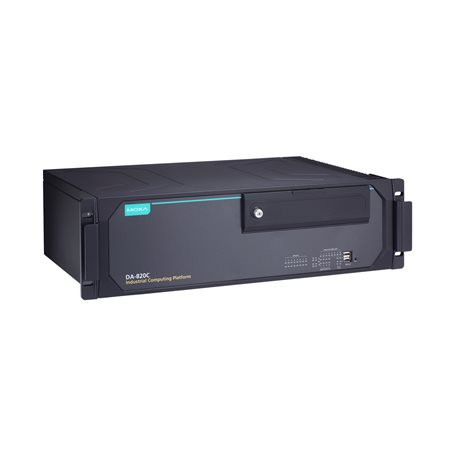

The DA-820C Series is a high-performance 3U rackmount industrialcomputer built around a 7th Gen Intel® Core™ i3/i5/i7 or Intel® Xeon®processor and comes with 3 display ports (HDMI x 2, VGA x 1), 6 USBports, 4 gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports,6 DI ports, and 2 DO ports. The DA-820C is also equipped with 4 hotswappable 2.5” HDD/SSD slots that support Intel® RST RAID 0/1/5/10functionality and PTP/IRIG-B time synchronization.
The DA-820C complies with IEC-61850-3,IEEE 1613, IEC 60255, and EN50121-4 standards to deliver stable andreliable system operations for power applications.
IEC 60255 is one of the most widelyused standards for the protection of electrical relays in a smartsubstation. Compliance with the standard ensures that the DA-820Cwill work reliably and seamlessly with IEDs as part of a robust substationautomation system.
EN 50121-4compliance confirms that the DA-820C can deliver stable and reliablesystem operations in rail wayside applications, such as station SCADAsystems, wayside disaster prevention, traction power, and signalingand safety systems, to provide an integrated view of your smart railsetup.
Moxa Proactive Monitoring is a small-footprint, resource-friendly,easy-to-use utility available with some Moxa computers to track anumber of system parameters. You can view the current values for keyparts by simply clicking on the icons corresponding to the parametersin a Windows-based user interface. User-defined key part indicators(KPIs) are used to monitor the computer’s key parts. Visible and/oraudio alerts are triggered automatically via relays and SNMP trapswhen these KPIs exceed their preset threshold values, making it extremelyconvenient for operators to avoid system downtime by setting up predictivemaintenance tasks well in advance.
The Proactive Monitoring tool is currently availablewith the following:DA-820C SeriesDA-720 SeriesMC-1200 SeriesMC-7400 Series

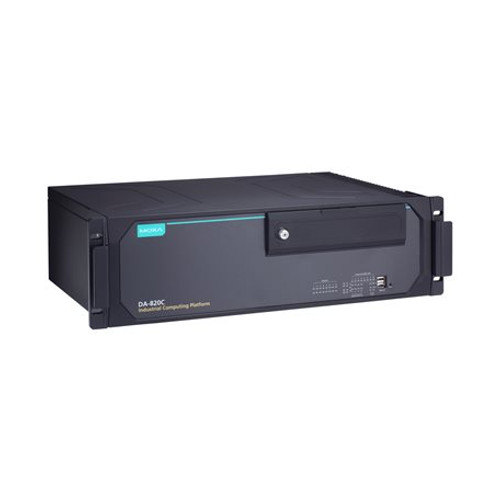

Front View
Rear View
