DA-820E-C7-H-T

DA-820E-C7-H-T

DA-820E Series
IEC 61850-3, 3U, Intel Core i7-1370PE CPU, Single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OS

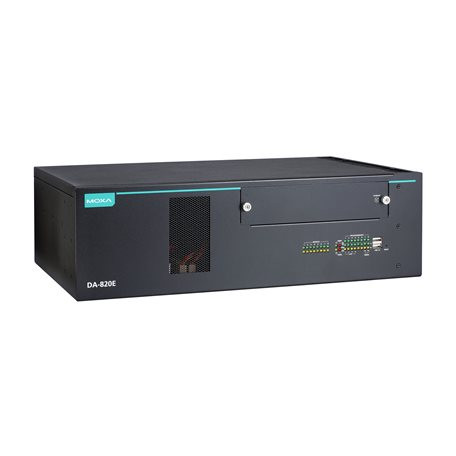

Image of DA-820E-C7-H-T
Free Ground Shipping on U.S. Orders over $99 $7,580.92 ON BACKORDER Estimated Availability: 08/07/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-da-820e-series-datasheet-v1.0.pdf
  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer
  • EN 50121-4 compliant for railway wayside applications
  • 13th Gen Intel® Core™ processor
  • 4 SSD slots with Intel® RST RAID 0/1 support for SSD slot 1 and 2
  • Up to 64 GB RAM (two built-in SODIMM DDR4 memory slots)
  • PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)
  • Security options such as TPM 2.0, UEFI Secure Boot and physical security
  • 1 PCIe x8 (4-lane) and 3 PCIe x1 for expansion modules
  • Redundant power supplies (100 to 240 VAC/VDC and 48 VDC) with hot-swappable power module design
View More
Overview Specifications Accessories

Introduction

The DA-820E Series is a high-performance 3U rackmount industrialcomputer powered by 13th Gen Intel® Core™ i3/i5/i7 processors, offeringexceptional computing capabilities. It features a versatile I/O design,including 3 display ports (2 HDMI and 1 VGA), 6 USB ports, 4 GigabitLAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 DI ports, 2 DOports, 4 standard PCIe expansion slots, and 1 proprietary expansionslot. Additionally, it is equipped with 4 hot-swappable 2.5” SSD slots,supporting Intel® RST RAID 0/1 functionality on SSD slots 1 and 2for enhanced storage performance and reliability.

Engineered specifically for substationapplications, the DA-820E complies with IEC 61850-3, IEEE 1613, andIEC 60255 standards, guaranteeing ruggedness, reliability, and seamlessintegration with Intelligent Electronic Devices (IEDs) in demandingsubstation automation systems. Leveraging its 13th Gen Intel® processor,the DA-820E delivers the high computing power required for modern,complex software applications, such as virtualization, in additionto traditional OT SCADA functionalities.

Appearance
