Moxa DRP-C100-C1-T

DRP-C100 Series

DRP-C100-C1-T ; DIN-rail computer, Celeron 6305E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC

Free Ground Shipping on U.S. Orders over $99 $1,203.00 ON BACKORDER Estimated Availability: 02/27/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART

Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-drp-c100-series-datasheet-v1.2.pdf

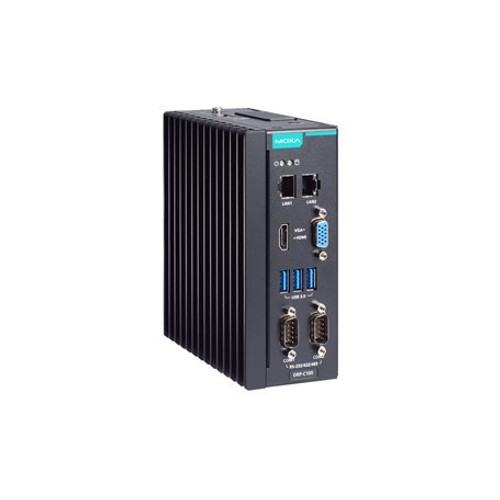

DIN-rail mountable computers with fanless design
Intel® Celeron® or Intel® Core™ i5, or i7 processor

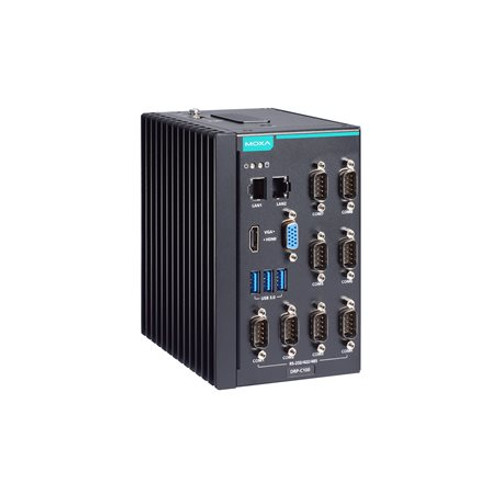

Rich interface options for up to 8 serial and 10 LAN ports
Compact size to fit most field applications
-30 to 60°C operating temperature range

Overview Specifications Accessories

Introduction

The DRP-C100Series DIN-rail mountable computers are powered by an Intel® Celeron®,or Intel® Core™ i5 or i7processor. The computers come with a richset of interface options including up to 8 software-selectable RS-232/422/485serial ports and up to 10 gigabit Ethernet ports. The communicationinterfaces are located on the front and rear sides of the product,enabling easy access and expansion for industrial applications. Adual-storage design that includes CFast and SD slots enables easystorage expansion. A unique battery-fastener cover secures the batteryin place and ensures stability in all operating environments whilea trap-door design for the battery slot enables easy battery swappingwithout having to remove the cover.

TheDRP-C100 compact computers come in a fanless design and can withstanda temperature range of -30 to 60°C, making them a good fit for harshoperating environments. The built-in TPM 2.0 module secures the platformfrom unauthorized access. The DRP-C100 Series is an intelligent, reliable,durable, and versatile yet user-friendly computing solution that fulfillsboth OT and IT requirements of industrial environments.
