EDS-2008-ELP

MOXA EDS-2008-ELP

EDS-2008-ELP Series
8-Port Entry-level Unmanaged Switch, 8 Fast TP ports, -10 to 60°C

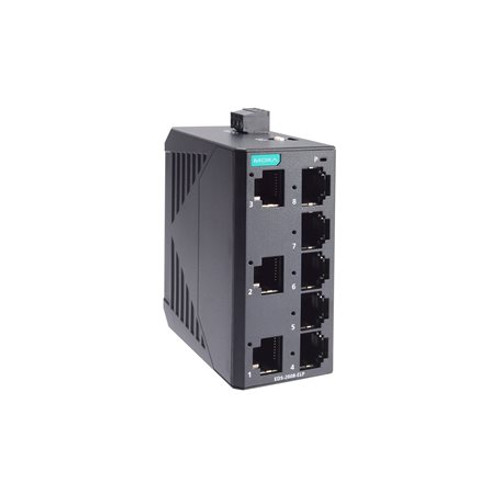

Image of EDS-2008-ELP
Free Ground Shipping on U.S. Orders over $99 $128.25 IN STOCK: 10 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-eds-2008-elp-series-datasheet-v2.1.pdf
  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated plastic housing
  • Compliant with PROFINET Conformance Class A Only for models with hardware version 2.0.0 or later.
View More
Overview Specifications Accessories

Introduction

The EDS-2008-ELP series of industrial Ethernet switcheshave eight 10/100M copper ports and a plastic housing, which are idealfor applications that require simple industrial Ethernet connections.Moreover, to provide greater versatility for use with applicationsfrom different industries, the EDS-2008-ELP Series also allows usersto enable or disable the Quality of Service (QoS) function, and broadcaststorm protection (BSP) with DIP switches on the outer panel..

The EDS-2008-ELP Serieshas a 12/24/48 VDC single power input, DIN-rail mounting, and high-levelEMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELPSeries has passed a 100% burn-in test to ensure it will function reliablyafter it has been deployed. The EDS-2008-ELP Series has a standardoperating temperature range of -10 to 60°C.

The EDS-2008-ELP Series is also compliant with PROFINET ConformanceClass A (CC-A), making these switches suitable for PROFINET networks.
