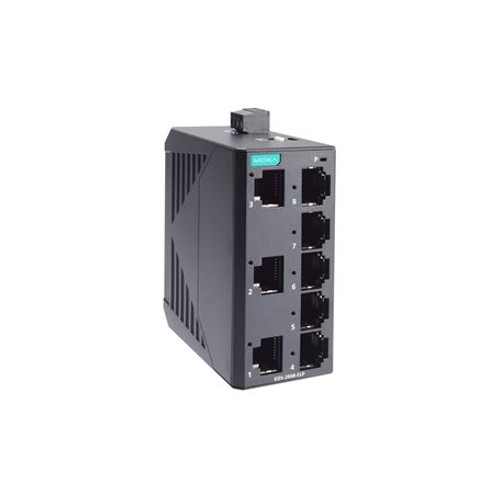

EDS-2008-ELP Series

Moxa EDS-2008-ELP Series

8-port entry-level unmanaged Ethernet switches with plastic housing
EDS-2008-ELP Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-2008-elp-series-datasheet-v2.1.pdf
  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated plastic housing
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The EDS-2008-ELP series of industrial Ethernetswitches have eight 10/100M copper ports and a plastic housing, whichare ideal for applications that require simple industrial Ethernetconnections. Moreover, to provide greater versatility for use withapplications from different industries, the EDS-2008-ELP Series alsoallows users to enable or disable the Quality of Service (QoS) function,and broadcast storm protection (BSP) with DIP switches on the outerpanel..

The EDS-2008-ELPSeries has a 12/24/48 VDC single power input, DIN-rail mounting, andhigh-level EMI/EMC capabilities. In addition to its compact size,the EDS-2008-ELP Series has passed a 100% burn-in test to ensure itwill function reliably after it has been deployed. The EDS-2008-ELPSeries has a standard operating temperature range of -10 to 60°C.
