EDS-2010-ML-2GTXSFP-T

Moxa EDS-2010-ML-2GTXSFP-T

EDS-2010-ML Series
Unmanaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, and -40 to 75°C operating temperature

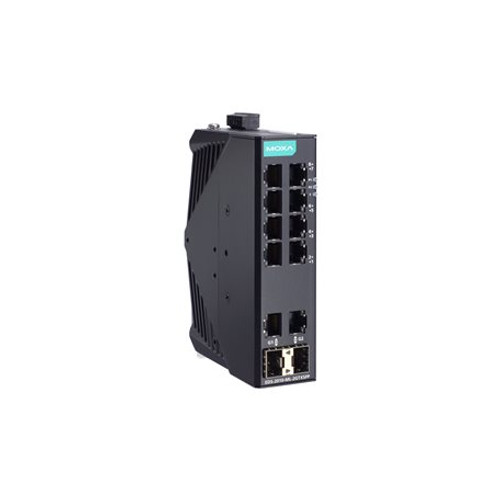

Image of EDS-2010-ML-2GTXSFP-T
Free Ground Shipping on U.S. Orders over $99 $498.75 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-2010-ml-series-datasheet-v2.0.pdf
  • 2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
  • QoS supported to process critical data in heavy traffic
  • Relay output warning for power failure and port break alarm
  • IP30-rated metal housing
  • Redundant dual 12/24/48 VDC power inputs
  • -40 to 75°C wide operating temperature range (-T models)
View More
Overview Specifications Accessories

Introduction

The EDS-2010-MLseries of industrial Ethernet switches have eight 10/100M copper portsand two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, whichare ideal for applications that require high-bandwidth data convergence.Moreover, to provide greater versatility for use with applicationsfrom different industries, the EDS-2010-ML Series also allows usersto enable or disable the Quality of Service (QoS) function, broadcaststorm protection, and the port break alarm function with DIP switcheson the outer panel.

The EDS-2010-ML Serieshas 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-levelEMI/EMC capability. In addition to its compact size, the EDS-2010-MLSeries has passed a 100% burn-in test to ensure it will function reliablyin the field. The EDS-2010-ML Series has a standard operating temperaturerange of -10 to 60°C with wide-temperature (-40 to 75°C) models alsoavailable.
