EDS-2016-ML-MM-SC-T

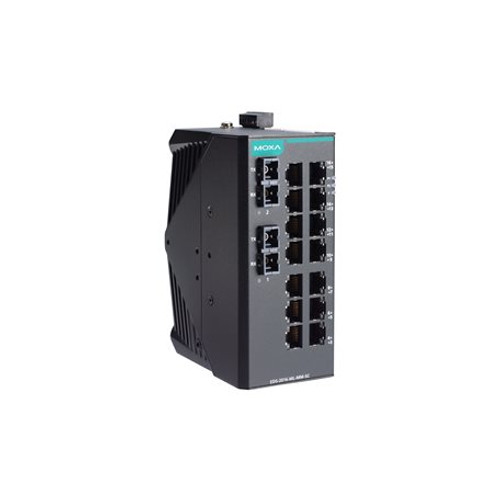

Moxa EDS-2016-ML-MM-SC-T

EDS-2016-ML Series
Unmanaged Ethernet switch with 14 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, and -40 to 75°C operating temperature
Image of EDS-2016-ML-MM-SC-T
Free Ground Shipping on U.S. Orders over $99 $685.75 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-2016-ml-series-datasheet-v2.2.pdf
  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
  • QoS supported to process critical data in heavy traffic
  • Relay output warning for power failure and port break alarm
  • IP30-rated metal housing
  • Redundant dual 12/24/48 VDC power inputs
  • -40 to 75°C operating temperature range (-T model)
View More
Overview Specifications Accessories

Introduction

The EDS-2016-MLSeries of industrial Ethernet switches have up to 16 10/100M copperports and two optical fiber ports with SC/ST connector type options,which are ideal for applications that require flexible industrialEthernet connections. Moreover, to provide greater versatility foruse with applications from different industries, the EDS-2016-ML Seriesalso allows users to enable or disable the Quality of Service (QoS)function, broadcast storm protection, and the port break alarm functionwith DIP switches on the outer panel.

Inaddition to its compact size, the EDS-2016-ML Series features 12/24/48VDC redundant power inputs, DIN-rail mounting, high-level EMI/EMCcapability, and an operating temperature range of -10 to 60°C with-40 to 75°C wide temperature models available. The EDS-2016-ML Serieshas also passed a 100% burn-in test to ensure it will function reliablyin the field.
