EDS-208A-SS-SC

MOXA EDS-208A-SS-SC

EDS-208A Series
Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode port with SC connector, -10 to 60°C operating temperature

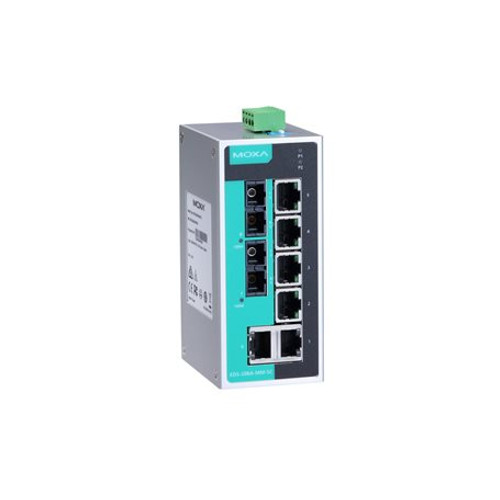

Image of EDS-208A-SS-SC
Free Ground Shipping on U.S. Orders over $99 $706.76 ON BACKORDER Estimated Availability: 07/18/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-208a-series-datasheet-v2.3.pdf
  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
  • Redundant dual 12/24/48 VDC power inputs
  • IP30 aluminum housing
  • Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/LR/ABS/NK)
  • -40 to 75°C wide operating temperature range (-T models)
View More
Overview Specifications Accessories

Introduction

The EDS-208A Series 8-port industrial Ethernet switchessupport IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex,MDI/MDI-X auto-sensing. The EDS-208A Series has 12/24/48 VDC (9.6to 60 VDC) redundant power inputs that can be connected simultaneouslyto live DC power sources. These switches have been designed for harshindustrial environments, such as in maritime (DNV/LR/ABS/NK), railwayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark),or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply withFCC, UL, and CE standards.

The EDS-208A switches are availablewith a standard operating temperature range from -10 to 60°C, or witha wide operating temperature range from -40 to 75°C. All models aresubjected to a 100% burn-in test to ensure that they fulfill the specialneeds of industrial automation control applications. In addition,the EDS-208A switches have DIP switches for enabling or disablingbroadcast storm protection, providing another level of flexibilityfor industrial applications.
