EDS-316-MM-SC

Moxa EDS-316-MM-SC

EDS-316 Series
Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -10 to 60°C

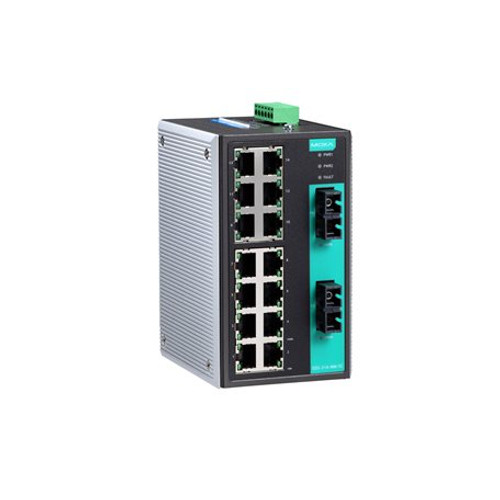

Image of EDS-316-MM-SC
Free Ground Shipping on U.S. Orders over $99 $824.68 IN STOCK: 39 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-eds-316-series-datasheet-v2.3.pdf
  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • -40 to 75°C wide operating temperature range (-T models)
View More
Overview Specifications Accessories

Introduction

The EDS-316 Ethernet switches provide an economicalsolution for your industrial Ethernet connections. These 16-port switchescome with a built-in relay warning function that alerts network engineerswhen power failures or port breaks occur. In addition, the switchesare designed for harsh industrial environments, such as the hazardouslocations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.

The switches complywith FCC, UL, and CE standards and support either a standard operatingtemperature range of -10 to 60°C or a wide operating temperature rangeof -40 to 75°C. All switches in the series undergo a 100% burn-intest to ensure that they fulfill the special needs of industrial automationcontrol applications. The EDS-316 switches can be installed easilyon a DIN rail or in a distribution box.
