EDS-4008-2SSC-HV-T

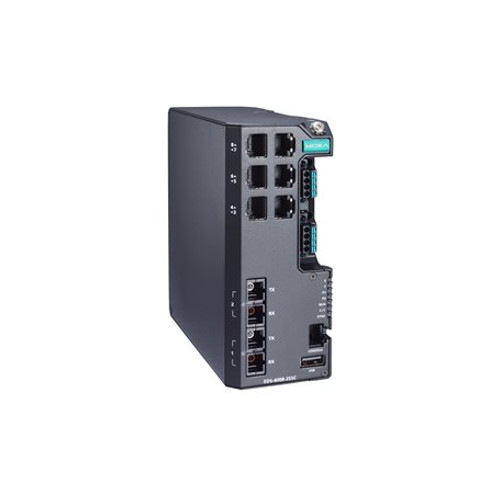

Moxa EDS-4008-2SSC-HV-T

EDS-4008 Series
EDS-4008-2SSC-HV-T ; Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors, single power input 110/220 VAC/VDC, -40 to 75°C operating temperature
Free Ground Shipping on U.S. Orders over $99 $1,852.00 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-4008-series-datasheet-v1.5.pdf
  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and RSTP/STP for network redundancy
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management
View More
Overview Specifications Accessories

Introduction

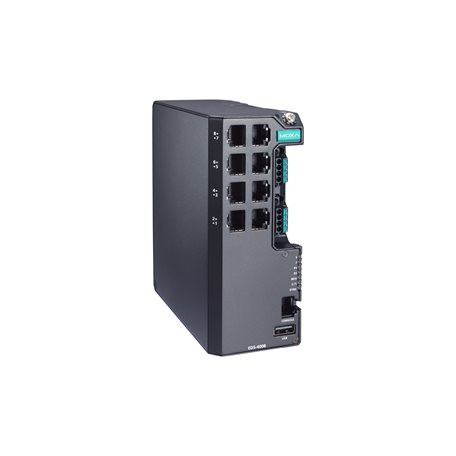

The EDS-4008Series is a range of 8-port managed Fast Ethernet switches with theoption for four 1 Gbps uplink ports or two 100M ST/SC fiber-opticports. This Series also offers models with four 10/100BaseT(X) 802.3af(PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port optionsto connect high-bandwidth PoE devices.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain,and RSTP/STP increase the reliability of your system and improve theavailability of your network backbone. The EDS-4008 Series is designedspecifically for demanding applications such as video and processmonitoring, ITS, and DCS systems, all of which can benefit from ascalable backbone.

The EDS-4008 Seriesis compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecuritycertifications, which cover both product security and secure developmentlife-cycle requirements, helping our customers meet the compliancerequirements of secure industrial network design.
