EDS-4012-4GC-LV-T

Moxa EDS-4012-4GC-LV-T

EDS-4012 Series
EDS-4012-4GC-LV-T ; Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature

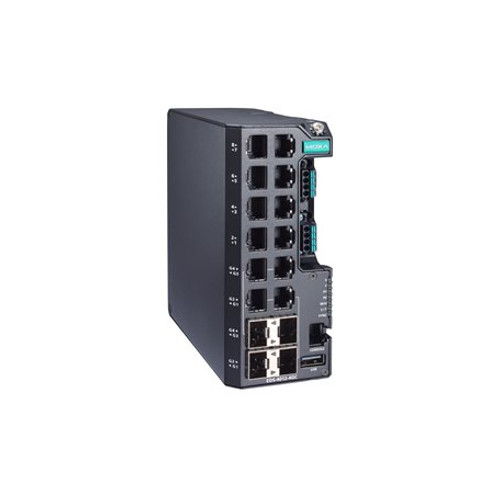

Image of EDS-4012-4GC-LV-T
Free Ground Shipping on U.S. Orders over $99 $1,549.00 IN STOCK: 1 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-eds-4012-series-datasheet-v1.5.pdf
  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and RSTP/STP for network redundancy
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management
View More
Overview Specifications Accessories

Introduction

The EDS-4012Series is a range of 12-port managed Fast Ethernet switches with theoption for four 1 Gbps fiber-optic uplink ports. This Series alsooffers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+),and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidthPoE devices.

Redundant Ethernet technologiessuch as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliabilityof your system and improve the availability of your network backbone.The EDS-4012 Series is designed specifically for demanding applicationssuch as video and process monitoring, ITS, and DCS systems, all ofwhich can benefit from a scalable backbone.

The EDS-4012 Series is compliant with the IEC62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications,which cover both product security and secure development life-cyclerequirements, helping our customers meet the compliance requirementsof secure industrial network design.
