EDS-405A-MM-ST-T

MOXA EDS-405A-MM-ST-T

EDS-405A Series
Entry-level managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature

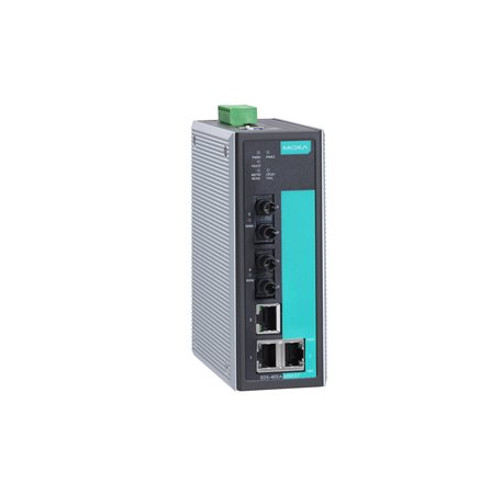

Image of EDS-405A-MM-ST-T
ADD TO CART
$857.25
Out of stock
  • Contact Us for Availability or Possible Alternatives
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-eds-405a-series-datasheet-v1.5.pdf
  • Turbo Ring and Turbo Chain (recovery time
  • IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • PROFINET or EtherNet/IP enabled by default (PN or EIP models)
  • Supports MXstudio for easy, visualized industrial network management
View More

Overview Specifications Accessories

Introduction

The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

Additional Features and Benefits

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, Modbus TCP and PROFINET EDS-405A-PN Series only protocols for device management and monitoring

  • EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available

  • PROFINET GSDML file and SIMATIC STEP 7 device icons available EDS-405A-PN Series only

  • Port mirroring for online debugging

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism

  • RMON for proactive and efficient network monitoring

  • SNMPv1/v2c/v3 for different levels of network management security

  • Bandwidth management to prevent unpredictable network status
