EDS-616-T

Moxa EDS-616-T

EDS-616 Series
Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16 ports, -40 to 75°C operating temperature

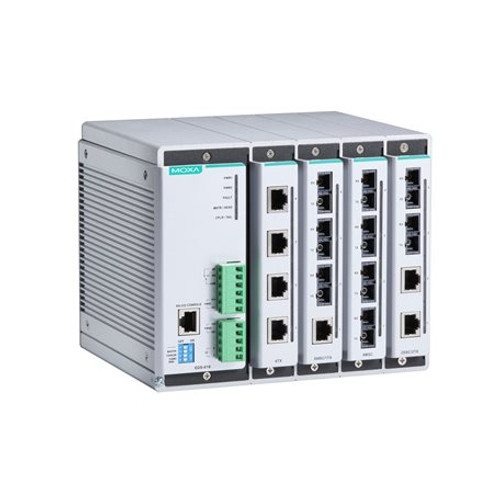

Image of EDS-616-T
Free Ground Shipping on U.S. Orders over $99 $2,976.21 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-616-series-datasheet-v1.6.pdf
  • Modular design with 4-port copper/fiber combinations
  • Hot-swappable media modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management
View More
Overview Specifications Accessories

Introduction

The versatile modular design of the compact EDS-616 Seriesallows users to combine fiber and copper modules to create switchsolutions suitable for any automation network. The EDS-616’s modulardesign lets you install up to 16 Fast Ethernet ports, and the advancedTurbo Ring and Turbo Chain (recovery time

Models with an extended operatingtemperature range of -40 to 75°C are also available. The EDS-616 Seriessupports several reliable and intelligent functions, including EtherNet/IP,Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping,VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making theEthernet switches suitable for any harsh industrial environment.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring majormanaged functions

  • SNMP Inform for ensuring reliable event management

  • LLDP for automated topology discovery

  • DHCP Option 82 for IP address assignment with differentpolicies

  • Supports EtherNet/IP and Modbus TCP protocols for devicemanagement and monitoring

  • Compatible with PROFINET protocol for transparent datatransmission

  • Port mirroring for online debugging

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease networkplanning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable networkstatus

  • Lock port function for blocking unauthorized access basedon MAC address

  • Automatic warning by exception through email and relayoutput
