EDS-G205A-4PoE-1GSFP-T

Moxa EDS-G205A-4PoE-1GSFP-T

EDS-G205A Series
Unmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseX (SFP slot) port, -40 to 75°C

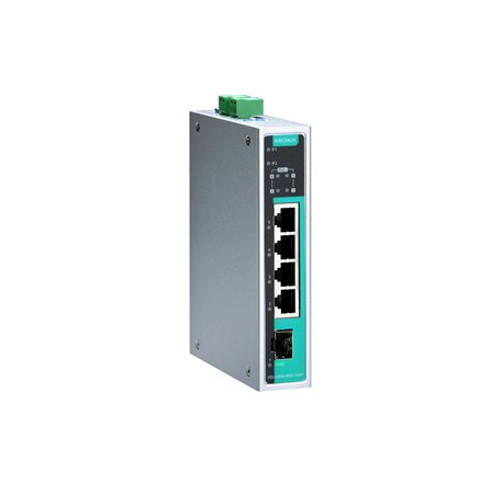

Image of EDS-G205A-4PoE-1GSFP-T
Free Ground Shipping on U.S. Orders over $99 $1,025.29 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-g205a-series-datasheet-v1.2.pdf
  • Full Gigabit Ethernet ports
  • IEEE 802.3af/at, PoE+ standards
  • Up to 36 W output per PoE port
  • 12/24/48 VDC redundant power inputs
  • Supports 9.6 KB jumbo frames
  • Intelligent power consumption detection and classification
  • Smart PoE overcurrent and short-circuit protection
  • -40 to 75°C operating temperature range (-T models)
View More
Overview Specifications Accessories

Introduction

The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches supporting Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 36 watts of power per port and reducing the effort needed for installing power.

The switches can be used to power IEEE 802.3af/at standard devices (power devices), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.
