EDS-G4012-4GC-LV-T

Moxa EDS-G4012-4GC-LV-T

EDS-G4012 Series
EDS-G4012-4GC-LV-T ; Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature

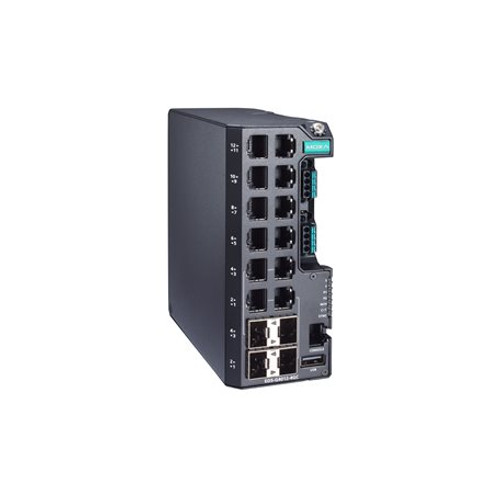

Image of EDS-G4012-4GC-LV-T
Free Ground Shipping on U.S. Orders over $99 $2,130.00 ON BACKORDER Estimated Availability: 02/24/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-g4012-series-datasheet-v1.5.pdf
  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
  • Turbo Ring and Turbo Chain (recovery time
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management
View More
Overview Specifications Accessories

Introduction

The EDS-G4012Series is equipped with 12 Gigabit Ethernet ports and up to four 1Gbps or 2.5 Gbps fiber-optic ports, making it ideal for upgradingan existing network to Gigabit speed or building a new full Gigabitbackbone. Gigabit transmission speed increases bandwidth for higherperformance and transfers large amounts of triple-play services acrossa network quickly. This Series also comes with eight 10/100/1000BaseT(X)802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet portoptions to connect high-bandwidth PoE devices.

Redundant Ethernet technologies such as TurboRing, Turbo Chain, and RSTP/STP increase the reliability of your systemand improve the availability of your network backbone. The EDS-G4012Series is designed specifically for demanding applications such asvideo and process monitoring, ITS, and DCS systems, all of which canbenefit from a scalable backbone construction.

The EDS-G4012 Series is compliant with the IEC62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications,which cover both product security and secure development life-cyclerequirements, helping our customers meet the compliance requirementsof secure industrial network design.
