EDS-G512E Series

Moxa EDS-G512E Series

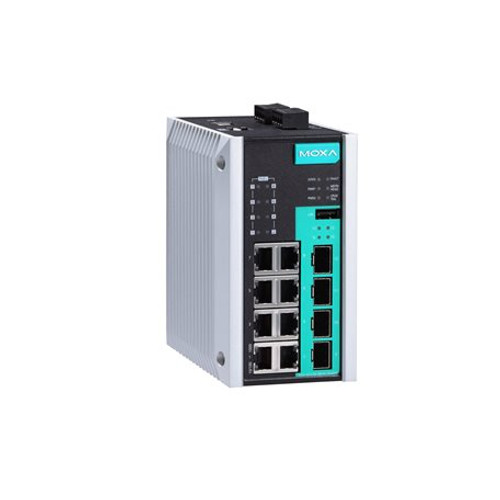

12G-port (with 8 PoE+ ports option) full Gigabit managed Ethernet switches
EDS-G512E Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-g512e-series-datasheet-v1.8.pdf
  • 8 IEEE 802.3af and IEEE 802.3at PoE+ standard ports
  • 36-watt output per PoE+ port in high-power mode
  • Turbo Ring and Turbo Chain (recovery time
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
  • Security features based on IEC 62443
  • EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

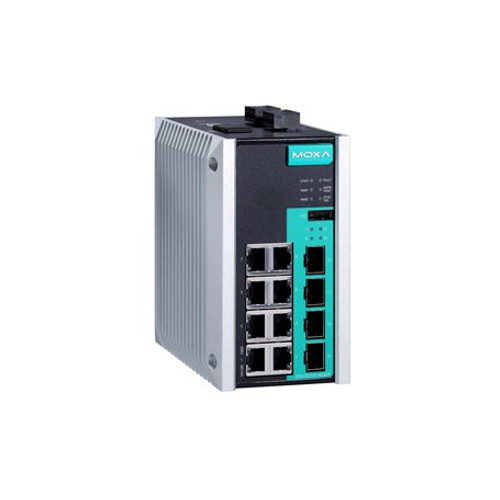

The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade

  • Port mirroring for online debugging

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Automatic warning by exception through email and relay output
