EDS-P206A-4PoE-M-SC-T

MOXA EDS-P206A-4PoE-M-SC-T

EDS-P206A Series
Unmanaged PoE Ethernet switch with 1 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 1 100BaseFX multi mode port with SC connector, -40 to 75°C

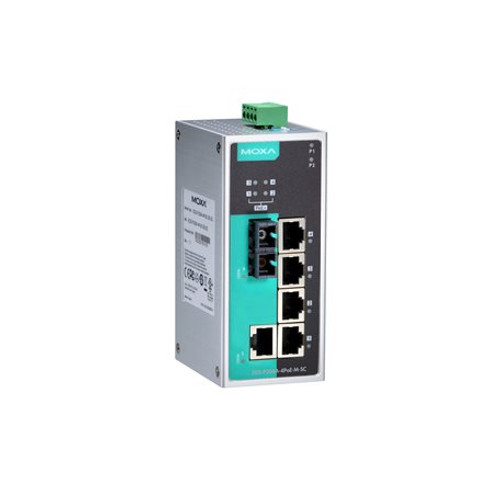

Image of EDS-P206A-4PoE-M-SC-T
ADD TO CART
$905.24
Out of stock
  • Contact Us for Availability or Possible Alternatives
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-eds-p206a-series-datasheet-v1.1.pdf
  • IEEE 802.3af/at compliant PoE and Ethernet combo ports
  • Up to 30 W output per PoE port
  • 12/24/48 VDC redundant power inputs
  • Intelligent power consumption detection and classification
  • Redundant dual VDC power inputs
  • -40 to 75°C operating temperature range (-T models)
View More

Overview Specifications Accessories

Introduction

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port.

The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
