EDS-P506E-4PoE-2GTXSFP-T

Moxa EDS-P506E-4PoE-2GTXSFP-T

EDS-P506E Series
Managed Ethernet PoE Switch with 4 PoE+/60W 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperature, dual 12/24/48VDC power inputs

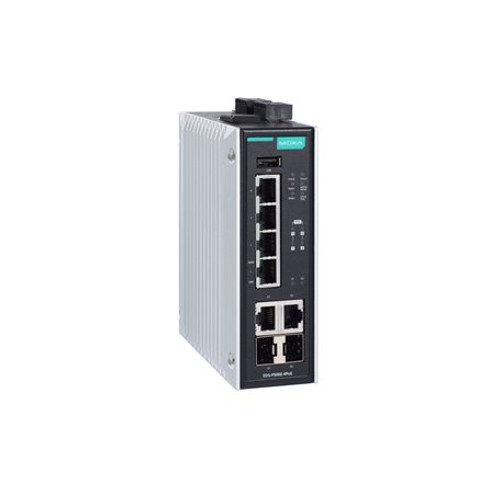

Image of EDS-P506E-4PoE-2GTXSFP-T
Free Ground Shipping on U.S. Orders over $99 $1,390.99 IN STOCK: 42 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-eds-p506e-series-datasheet-v1.4.pdf
  • Built-in 4 PoE+ ports support up to 60 W output per port
  • Wide-range 12/24/48 VDC power inputs for flexible deployment
  • Smart PoE functions for remote power device diagnosis and failure recovery
  • 2 Gigabit combo ports for high-bandwidth communication
  • Supports MXstudio for easy, visualized industrial network management
View More
Overview Specifications Accessories

Introduction

The EDS-P506E Series includes Gigabit managed PoE+ Ethernet switches that come standard with 4 10/100BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit Ethernet ports. The EDS-P506E Series provides up to 30 watts of power per PoE+ port in standard mode and allows a high-power output of up to 4-pair 60 W for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones.

The EDS-P506E Series is highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity. The Ethernet switches support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The EDS-P506E Series is designed especially for harsh outdoor applications with 4 kV surge protection to ensure uninterrupted reliability of PoE systems.

Additional Features and Benefits

  • Supports different PoE output settings (High-power 36 W and 60 W, Force and Legacy modes) to maximize powered device compatibility

  • Supports Smart PoE functions (PoE diagnosis, PD failure check, PoE scheduling, and PoE Event Warning) to enhance PoE operational efficiency

  • Command line interface (CLI) for quickly configuring major managed functions

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • Supports V-ON™ to ensure millisecond-level Layer2/Layer3 network recovery

  • Turbo Ring and Turbo Chain (recovery time Gigabit Ethernet recovery time RSTP/STP, and MSTP for network redundancy

  • Automatic warning by exception through email and relay output

  • Port mirroring for online debugging

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security

  • SNMPv1/v2c/v3 for different levels of network management

  • Fiber Check™ provides a comprehensive fiber Digital Diagnostic Monitoring (DDM) function and event warning on SFP fiber ports

  • Bandwidth management to prevent unpredictable network status

  • ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
