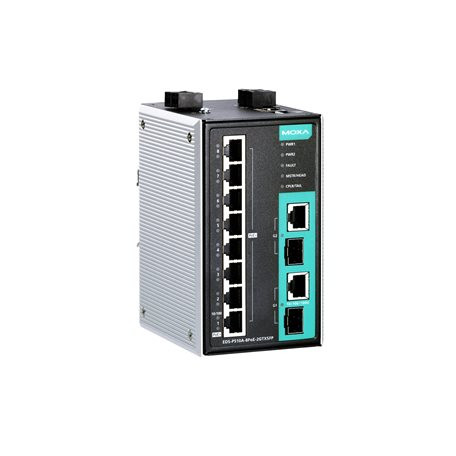

EDS-P510A Series

Moxa EDS-P510A Series

8+2G-port Gigabit PoE+ managed Ethernet switches with 8 IEEE 802.3af/at PoE+ ports
EDS-P510A Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-p510a-series-datasheet-v1.2.pdf
  • 8 built-in PoE+ ports compliant with IEEE 802.3af/at
  • Up to 36 W output per PoE+ port
  • 3 kV LAN surge protection for extreme outdoor environments
  • PoE diagnostics for powered-device mode analysis
  • 2 Gigabit combo ports for high-bandwidth and long-distance communication
  • Operates with 240 watts full PoE+ loading at -40 to 75°C
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

Moxa’s EDS-P510A Series has 8 10/100BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit Ethernet ports. The EDS-P510A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode and allow high-power output of up to 36 watts for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The EDS-P510A Ethernet Series is highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity.

The Ethernet switches support a variety of management functions, as well as STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The EDS-P510A Series is designed with 3 kV surge protection for harsh outdoor applications to increase the reliability of PoE systems.

Additional Features and Benefits

  • Supports different PoE output settings (High-power 36 W, Force and Legacy modes) to maximize powered device compatibility

  • Supports Smart PoE functions (PoE diagnosis, PD failure check, PoE scheduling, PoE Event Warning) to enhance PoE operational efficiency

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Turbo Ring and Turbo Chain (recovery time Gigabit Ethernet recovery time RSTP/STP, and MSTP for network redundancy

  • Compatible with PROFINET protocol for transparent data transmission

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security

  • Lock port function for blocking unauthorized access based on MAC address

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output
