EOM-104-FO Evaluation Kit

Moxa EOM-104-FO Evaluation Kit

EOM-104 Series

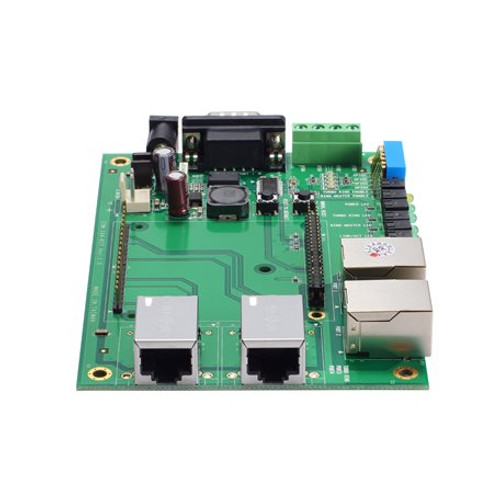

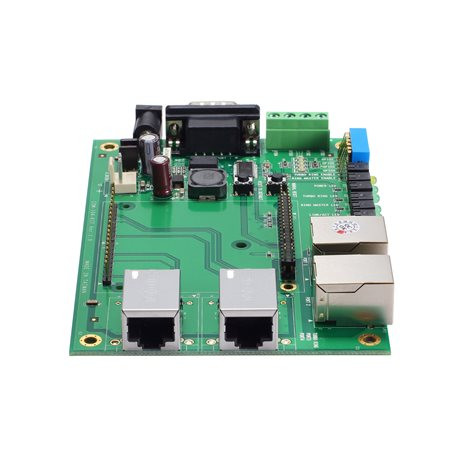

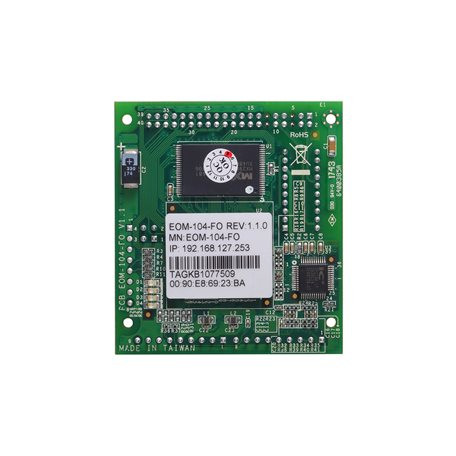

Includes a EOM-104-FO switch module and a evaluation board with 2 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports (SC connector) for testing and application development
Image of EOM-104-FO Evaluation Kit
Free Ground Shipping on U.S. Orders over $99 $653.77 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eom-104-series-datasheet-v1.1.pdf
  • 10/100BaseT(X) and 100BaseFX Ethernet interfaces
  • Turbo Ring and RSTP/STP for network redundancy
  • SNMP and email alerts for event trapping and notifications
  • Two-thirds the size of a business card
  • Low power consumption
  • -40 to 75°C operating temperature range
View More
Overview Specifications Accessories

Introduction

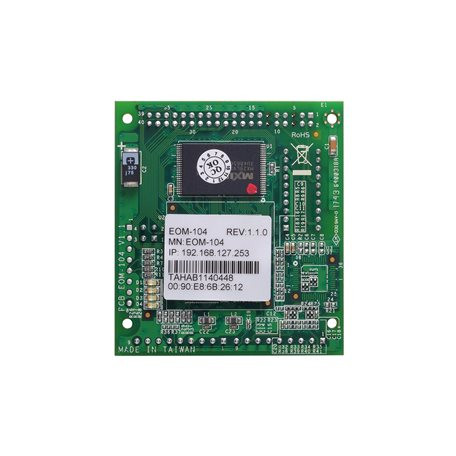

The EOM-104 Series is designed for device manufacturers who would like to embed Ethernet modules in their products to enhance performance and reliability. The EOM-104 Series provides an easy and cost-effective integrated solution for adding an Ethernet switch module to an existing product.

The modules support 10/100M Ethernet transmission and come with Turbo Ring’s fast recovery time of under 20 ms. The EOM-104 Series provides a rich set of peripherals, such as Turbo Ring Enable and GPIO programming pins, and is an ideal solution for embedded Ethernet applications.
