EXPC-F2150W-TL7-AC

Moxa EXPC-F2150W-TL7-AC

EXPC-F2150W Series
EXPC-F2150W-TL7-AC ; 15.6-inch(16:9) flat-panel fanless Panel Computer incl Intel Core i7-1185G7E, 16GB RAM, 1200nits,3x RS-232/422/485,4x GigaLan, 2xUSB 2.0,2xUSB 3.0, 1xVGA, 1xDP,AC power input, W.T. -40-70°C hazardous Zone2&22
Image of EXPC-F2150W-TL7-AC
Free Ground Shipping on U.S. Orders over $99 $5,950.35 ON BACKORDER Estimated Availability: 02/25/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-expc-f2150w-series-datasheet-v1.0.pdf
  • 15.6 inch 16:9 display
  • High-performance Tiger Lake Intel® Core™ i7/ Core™ i5/Core™ i3 or Intel® Celeron® processor
  • Built-in light sensor for auto brightness control
  • 1200-nit sunlight-readable anti-glare display
  • Optical bonding of the display for deploying in harsh environments
  • Fanless thermal design for efficient heat dissipation in high-temperature environments
  • UL C1D2/C2D2, ATEX, and IECEx ZONE 2/Zone 22 compliant
  • Front IP66 and rear IP42 certified
  • -40 to 70°C operating temperature range
  • Options for 5G and Wi-Fi 6 connections
  • Designed for deploying in hazardous locations and for mission-critical applications
View More
Overview Specifications Accessories

Introduction

The EXPC-F2150W Series consists of 15.6-inch panel computers witha 11th Gen Intel Core™ i processor that deliver a reliable, durable,and versatile platform for use in industrial, hazardous, and mission-criticalenvironments. The EXPC-F2150W panel computers come with a rich setof communication interfaces to meet the needs of all your industrial-applicationscenarios. The panel computers are also provided with a DisplayPortand VGA video outputs for extending the display.

The EXPC-F2150W panel computerscome in a fanless design for operations in the -40 to 70°C temperaturerange and a streamlined enclosure for efficient heat dissipation,making them the most reliable industrial platforms available for harsh,hot, outdoor environments such as oil and gas fields, drilling platforms,and power stations, as well as smart heater solutions. The panel computersare also specifically designed with sunlight-readable features suchas a 1200-nit LCD panel, projected-capacitive, glove-friendly, multi-touchscreen, optical bonding, and anti-glare design, to provide an excellentuser experience for outdoor applications.

Appearance

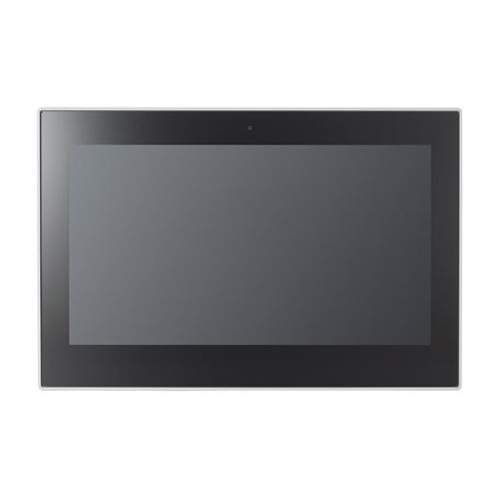

Front View

Bottom View

Models With AC Power Input

Models With DC Power Input

Side View
