ICS-G7748A-HV-HV

Moxa ICS-G7748A-HV-HV

ICS-G7748A Series
Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature

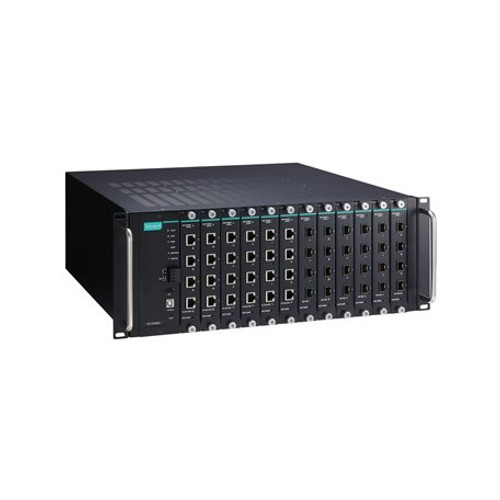

Image of ICS-G7748A-HV-HV
Free Ground Shipping on U.S. Orders over $99 $11,037.25 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ics-g7748a-series-datasheet-v1.9.pdf
  • Up to 48 Gigabit Ethernet ports
  • Up to 48 optical fiber connections (SFP slots)
  • Up to 48 PoE+ ports with external power supply (with IM-G7000A-4PoE module)
  • Fanless, -10 to 60°C operating temperature range
  • Modular design for maximum flexibility and hassle-free future expansion
  • Hot-swappable interface and power modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
View More
Overview Specifications Accessories

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7748A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports.

The ICS-G7748A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

  • Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics (with IM-G7000A-4PoE module)

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • Redundant, dual AC power inputs

  • Digital inputs for integrating sensors and alarms with IP networks

  • IGMP snooping and GMRP for filtering multicast traffic

  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • Access control lists (ACL) increase the flexibility and security of network management

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address
