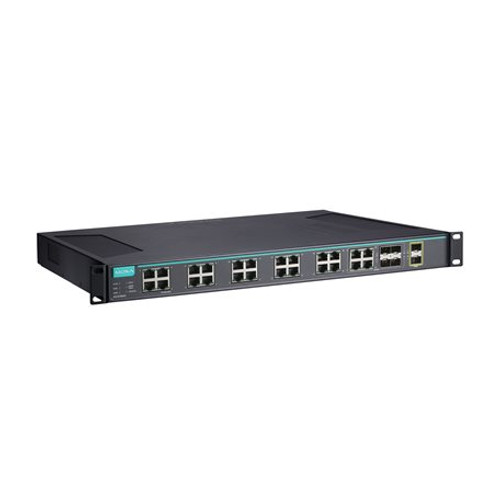

ICS-G7826A Series

MOXA ICS-G7826A Series

24G+2 10GbE-port Layer 3 full Gigabit managed Ethernet switches
ICS-G7826A Series
VIEW MODELS
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-ics-g7826a-series-datasheet-v1.9.pdf
  • 24 Gigabit Ethernet ports plus up to 2 10G Ethernet ports
  • Up to 26 optical fiber connections (SFP slots)
  • Fanless, -40 to 75°C operating temperature range (T models)
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
View More

Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7826A Series is equipped with 24 Gigabit Ethernet ports plus up to 2 10 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.

The ICS-G7826A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

  • Layer 3 switching functionality to move data and information across networks

  • Command line interface (CLI) for quickly configuring major managed functions

  • Supports advanced VLAN capability with Q-in-Q tagging

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • IGMP snooping and GMRP for filtering multicast traffic

  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning

  • Automatic warning by exception through email and relay output

  • Redundant, dual AC power inputs

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • Access control lists (ACL) increase the flexibility and security of network management

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Digital inputs for integrating sensors and alarms with IP networks
