IKS-6728A-4GTXSFP-HV-HV-T

Moxa IKS-6728A-4GTXSFP-HV-HV-T

IKS-6728A Series
Modular managed Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, and 2 slots for fast Ethernet modules, front cabling, 2 isolated power supplies (85-264 VAC), -40 to 75°C

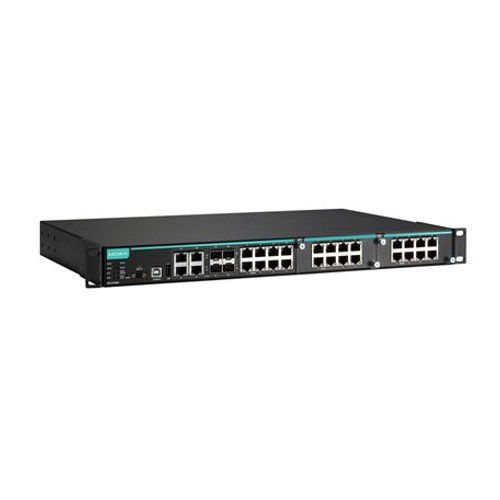

Image of IKS-6728A-4GTXSFP-HV-HV-T
Free Ground Shipping on U.S. Orders over $99 $2,047.13 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-iks-6728a-series-datasheet-v1.14.pdf
  • 8 built-in PoE+ ports compliant with IEEE 802.3af/at (IKS-6728A-8PoE)
  • Up to 36 W output per PoE+ port (IKS-6728A-8PoE)
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
  • 1 kV LAN surge protection for extreme outdoor environments
  • PoE diagnostics for powered-device mode analysis
  • 4 Gigabit combo ports for high-bandwidth communication
  • -40 to 75°C operating temperature range at 720 W full loading
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
View More
Overview Specifications Accessories

Introduction

The IKS-6728A Series is designed to meet the demands of mission-critical applications for business and industry. The IKS-6728A and IKS-6728A-8PoE come with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo Gigabit Ethernet ports. The IKS-6728A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode, and also support high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones.

IKS-6728A-8PoE Ethernet switches support two types of power input sources: 48 VDC for PoE+ ports and system power, and 110/220 VAC for system power. These Ethernet switches also support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The IKS-6728A-8PoE is designed especially for harsh outdoor applications with 3kV surge protection to ensure the uninterrupted reliability of PoE systems.

Additional Features and Benefits

  • Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • Turbo Ring and Turbo Chain (recovery time

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • IEEE 802.3ad, LACP for optimum bandwidth utilization

  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management prevents unpredictable network status with “Lock port” to restrict access to authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • Automatic recovery of connected device’s IP addresses

  • Line-swap fast recovery

  • Configurable by web browser, Telnet/serial console, CLI, Windows utility, and ABC-02-USB automatic backup configurator
