IKS-G6524A-20GSFP-4GTXSFP-HV-HV

Moxa IKS-G6524A-20GSFP-4GTXSFP-HV-HV

IKS-G6524A Series
IKS-G6524A-20GSFP-4GTXSFP-HV-HV ; Layer 2 Full Gigabit managed Ethernet switch with 20 100/1000BaseSFP slots and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature

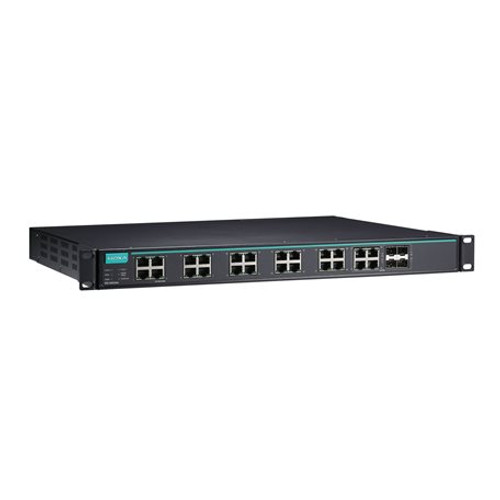

Image of IKS-G6524A-20GSFP-4GTXSFP-HV-HV
Free Ground Shipping on U.S. Orders over $99 $4,123.67 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-iks-g6524a-series-datasheet-v1.7.pdf
  • 24 Gigabit Ethernet ports
  • Up to 24 optical fiber connections (SFP slots)
  • Fanless, -40 to 75°C operating temperature range (T models)
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
View More
Overview Specifications Accessories

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6524A Series is equipped with 24 Gigabit Ethernet ports.

The IKS-G6524A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • Supports advanced VLAN capability with Q-in-Q tagging

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Digital inputs for integrating sensors and alarms with IP networks

  • Redundant, dual AC power inputs

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output

  • IGMP snooping and GMRP for filtering multicast traffic
